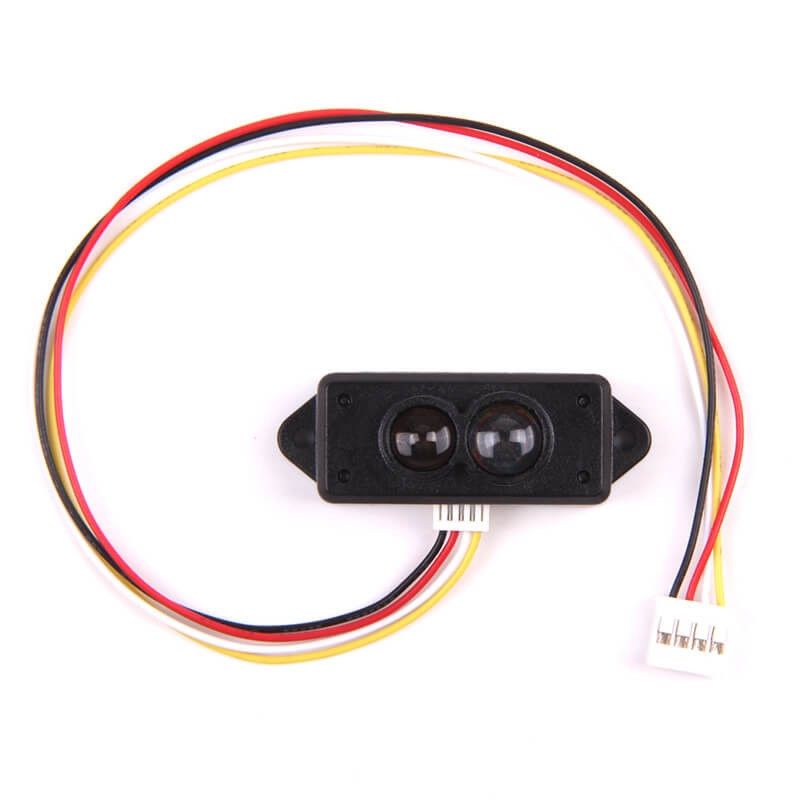

This is a Crowtail- TF Mini LiDAR sensor, which is based on Time of Flight. The range of its measuring distance is 0.3-12m. with its mini size, only 42 x 15 x 16mm, so you can integrate LiDAR into applications traditionally reserved for smaller sensors. The TF Mini LiDAR module is mainly capable of the function of real-time and contactless distance measurement and is featured by accurate, stable and high-speed distance measurement.

It can be used on drone altitude holding and terrain following, machine control and safety sensor, robot distance detection and so on.

Speksit

• Operating range: 0.3-12m
• Maximum operating range at 10% reflectivity: 5m
• Average power consumption: 0.6w
• Application voltage range: 4.5-6v
• Acceptance angle: 2.3°
• Minimum resolution ratio: 1cm
• Frequency: 100Hz
• Accuracy: 1% (less than 6m), 2% (6-12m)
• Distance detection unit: cm
• Laser wavelength: 850nm
• Operating temperature: -20-60℃
• Light sensitivity: 70000lux
• Communication interface: UART
• Laser safety class: FDA Class I
• LED peak current: 800mA
• Electromagnetic compatibility (EMC): EN 55032 Class B

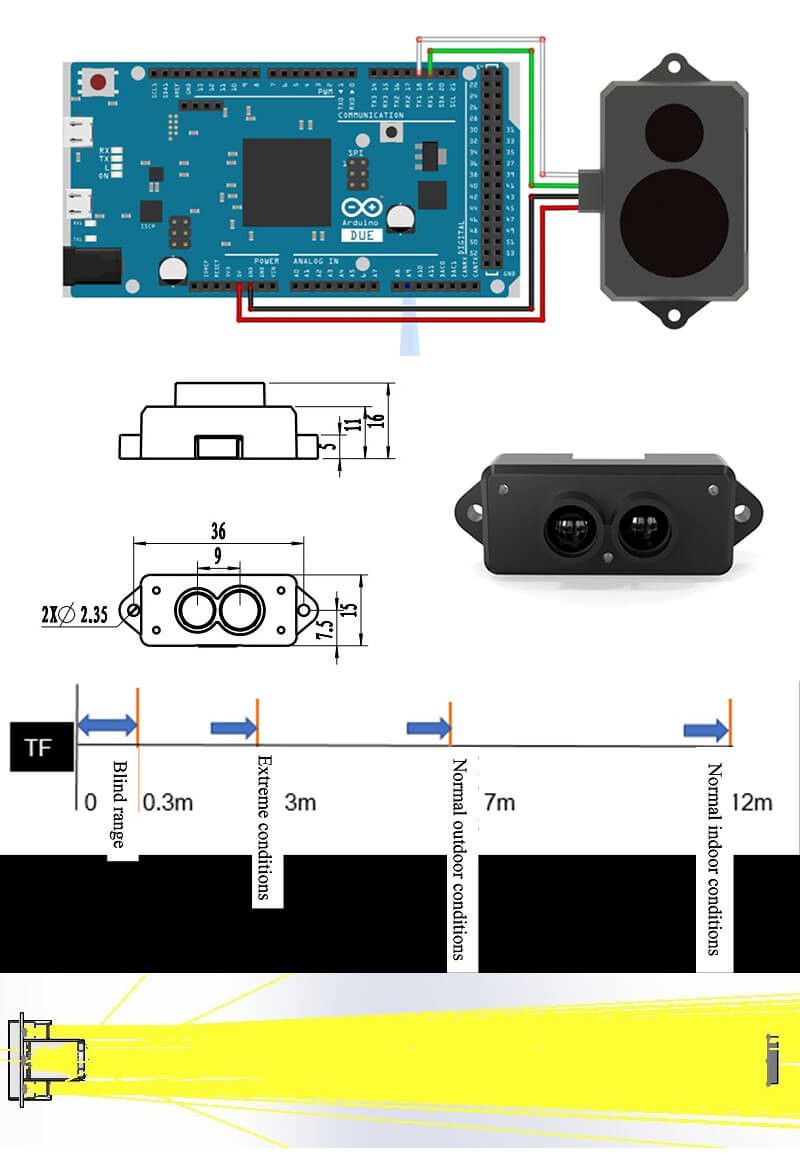

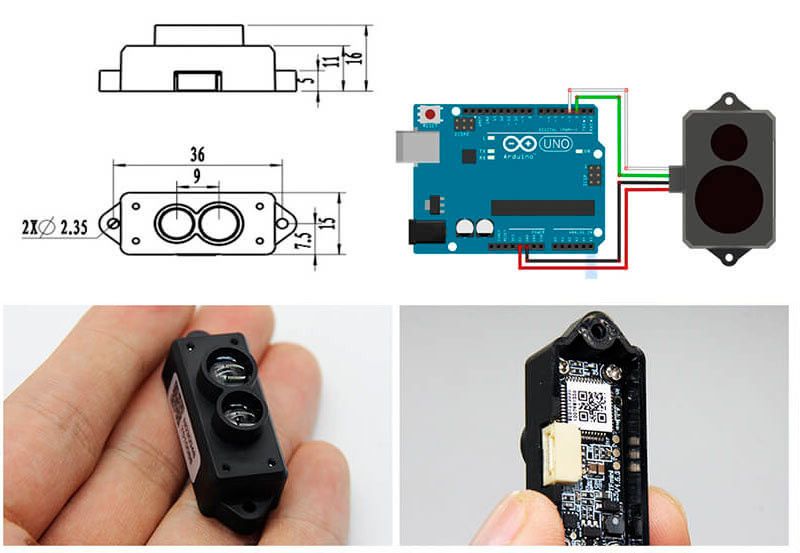

• Dimension(mm):42(L)x15(W)x16(H)

Osalista

• Crowtail- TF Mini LiDAR x 1
