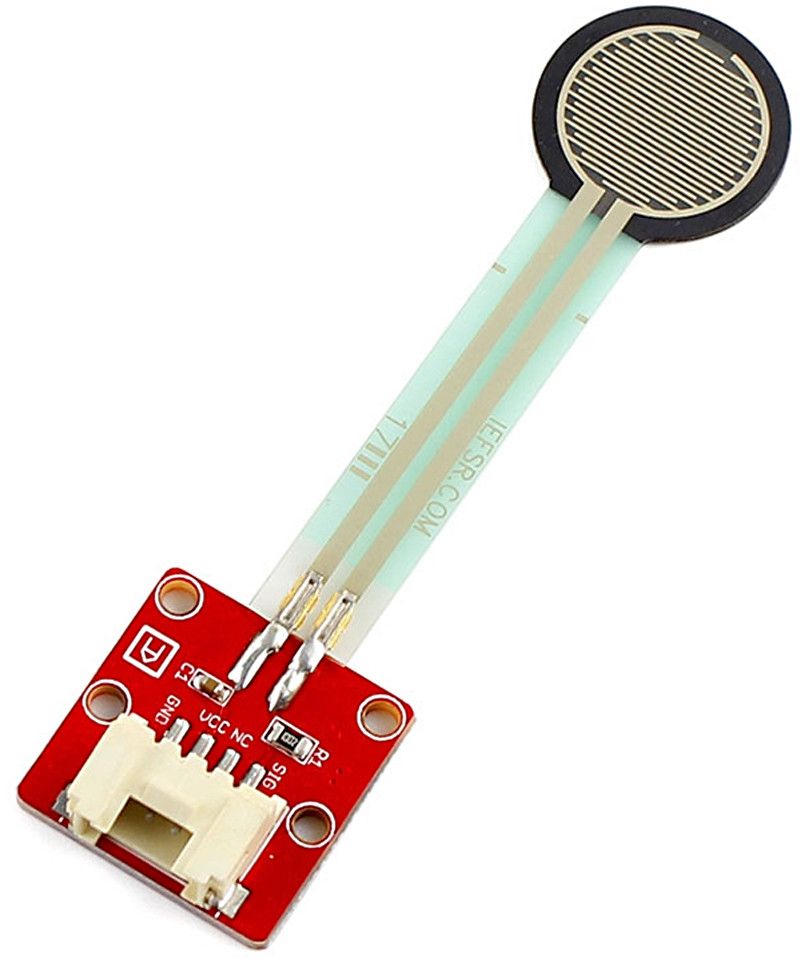

This Crowtail- Pressure Sensor converts the pressure applied to the area of the FSR sensor film into a change in resistance value to obtain pressure information. The higher the pressure, the lower the resistance. It is allowed to be used at pressures of 0g to 10kg.

It can be used to sense the presence or absence of gripping items at the end of the mechanical gripper, the biped robot, the ground sensing of the spider robot, the biological experiment of the bite force test of mammals, and the scope of application.

Ominaisuudet

• Interface: Analog
• Working voltage: 5V DC 165 mA
• Length (with metal pins): 6cm
• Overall width: 1.9cm
• Sensor sensing area diameter: 1.27cm
• Range of forces: 0.2N to 20N (100g~10KG)
• Service life: >1 million extrusions
• Dimensions(mm):77.0(L)x20.0(W)x6.8(H)

Toimitus

• Crowtail-FSR402 Pressure Sensor x 1

Linkkivinkit

• Elecrow wiki link (User manual)
