Intelligent non-contact liquid level sensor (here in after referred to as the liquid level sensor) adopted the advanced signal processing technology and high-speed signal processing chip, broke through the vessel wall thickness, the influence of realized in an airtight container level of real non-contact detection. Liquid level sensor (probe) installed on the outer wall of the container to be tested on the lower part (level of high and low), non-metallic containers without the hole, easy to install, do not affect production. Can realize various toxic substances of high pressure airtight container, strong acid, strong alkali and all kinds of liquid level detection. The material of liquid level sensor for liquid medium and container no special requirements, can be widely used.

Ominaisuudet

• Crowtail interface
• No direct contact with liquid
• Level output
• Working Voltage: 5V～24V
• Induction distance can reach more than 12 mm
• Easy to use
• Sensor dimensions(mm):28.3(L)x28.3(W)x17.0(H)
• Cable length:58.5cm

Speksit

• Power flow: 5mA
• Output voltage (high level): InVcc
• Output voltage (low level): 0V
• Output current: 1-50mA
• Respose time: 500ms
• Working temperature: 0-100°C
• Sensitivity: 0-20mm
• Humidity: 5-100%
• Material: ABS
• Waterproof: IP67

Osalista

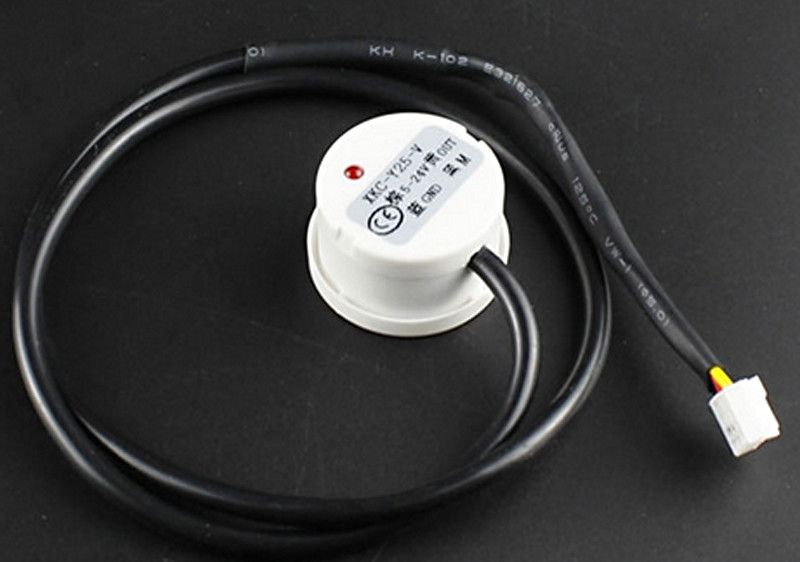

• Crowtail- Non-contact liquid level sensor x1

Linkkivinkit

• Elecrow Wiki link

Huom! Ei ammattikäyttöön tai toimilaitteen ohjaukseen.
