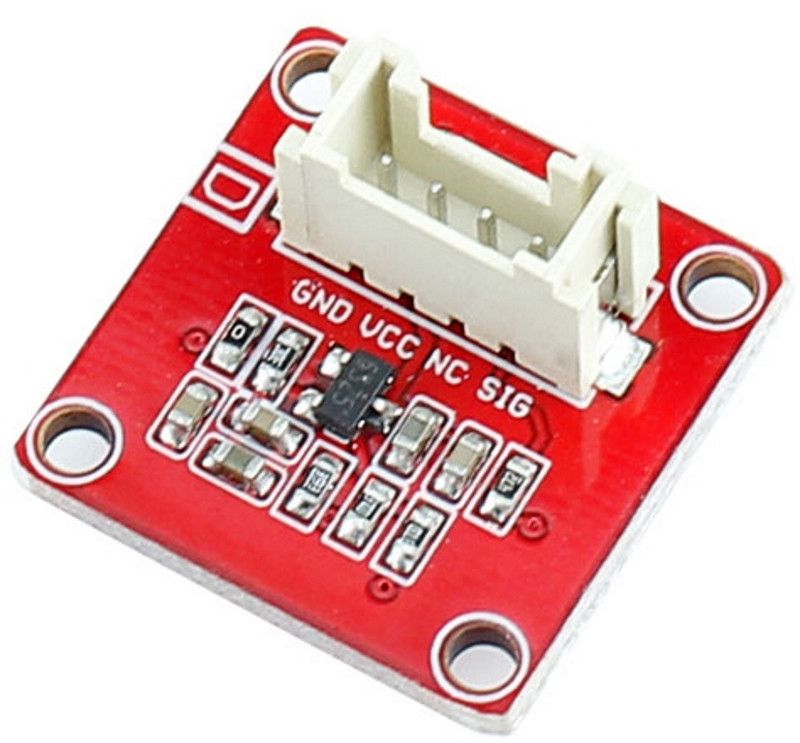

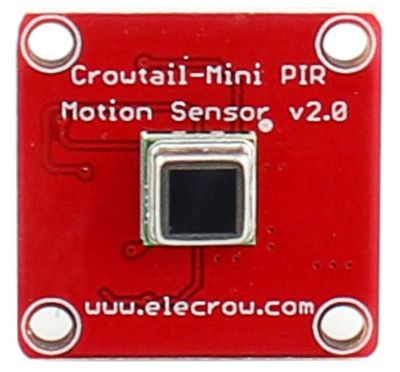

The Crowtail- Mini PIR Motion Sensor is a compact, low power consumption and cost effective PIR sensor. It interfaces directly with up to two conventional PIR sensors via a high impedance different input. The PIR Signal is converted to a 15 bit digital value on chip.

It is used for making motion detecting applications such as alarm burglar systems, visitor presence monitoring, light switches and robots.

Features

• Low power consumption
• Digital signal processing（DSP)
• Built-in filter, high immunity to RFI
• Crowtail interface

Specifications

• Best detect distance: >2m
• Dimensions: 20x20mm
• Sensor chip: S16-L221D
• Sensitivity: 120 – 530 μV
• Max detecting range: 2m(25℃)

Package list

• Crowtail- Mini PIR Motion Sensor x 1

Links

• User manual (Elecrow wiki link)
