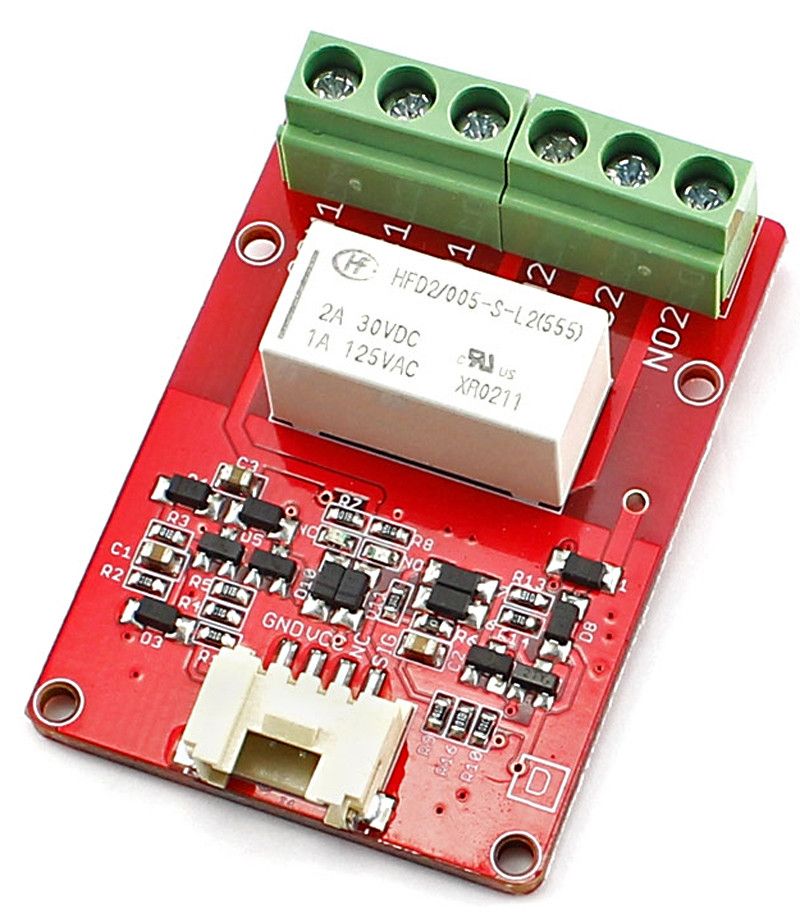

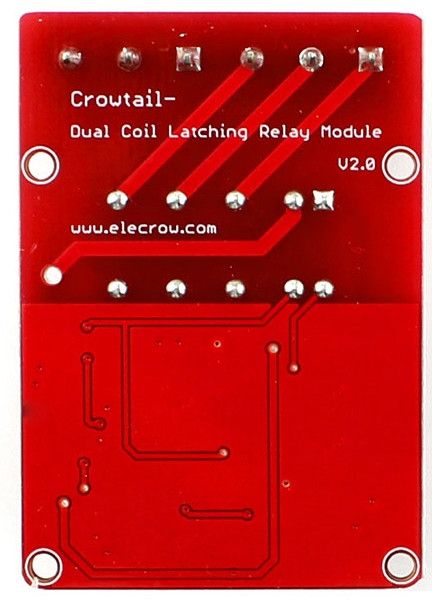

This is a dual-channel latching relay，it can keep the original state from changing in the event of a power failure. If you need to change the state, only need to rise or falling edge. Since the power supply can be cut off without changing the operating state,so that the module is specifically designed for low power consumption circuit design.

Ominaisuudet

• 2 Form C contact, Polarized relay.
• High sensitivity 150mW.
• Fits standard 16 pin IC socket.
• High switching capacity 60W,125VA.
• Epoxy sealed for automatic wave soldering and cleaning.

Speksit

• Operating voltage: 5v
• Set/Reset Voltage (Max): 4.0 VDC
• Switching Voltage (Max): 35 VAC/ 35 VDC
• Switching Current (Max): 3A
• Set Time (Latching): 4.5 (max) ms
• Reset Time (Latching): 3.5 (max) ms
• Dimensions(mm):50.0(L)x35.0(W)x14.3(H)

Osalista

• Crowtail- Dual Coil Latching Relay Module x1
• 4 pin Crowtail cable x1

Linkkivinkit

• Elecrow User manual(wiki link)

Huom! Ei ammattikäyttöön. Ei toimilaitteiden ohjaukseen. Älä käytä 230V laitteiden ohjaukseen.
