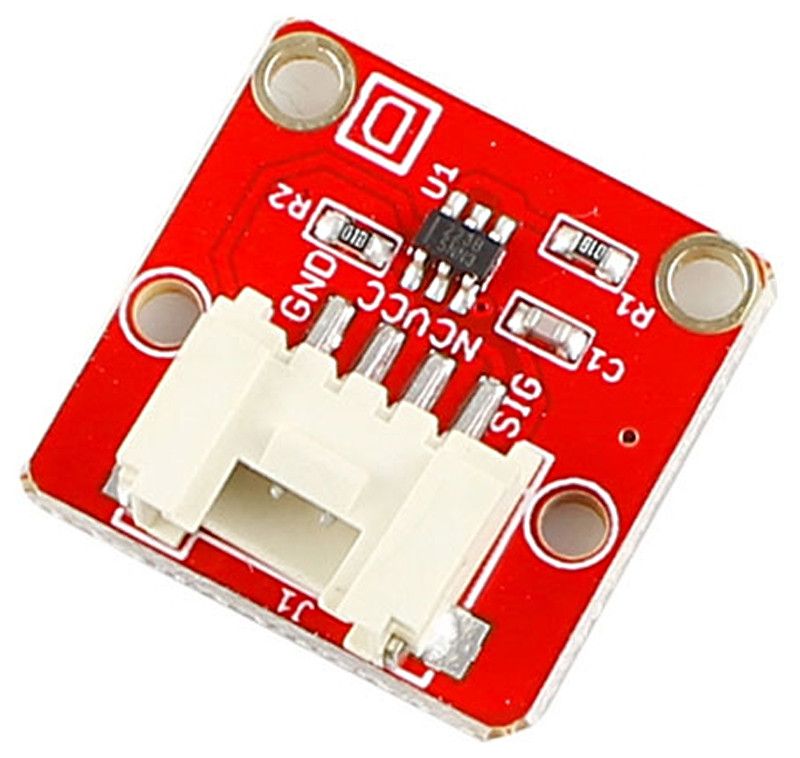

The touch sensor can detect the human touch by sensing the change of capacitance. Based on the touch IC TTP223-B, this module can detect human finger in 0~3mm, that is, you can place this sensor under a non metallic surface such as the glass or paper, with thickness less than 3MM, this would be useful for applications that waterproof is needed, or you want to make the buttons secret.

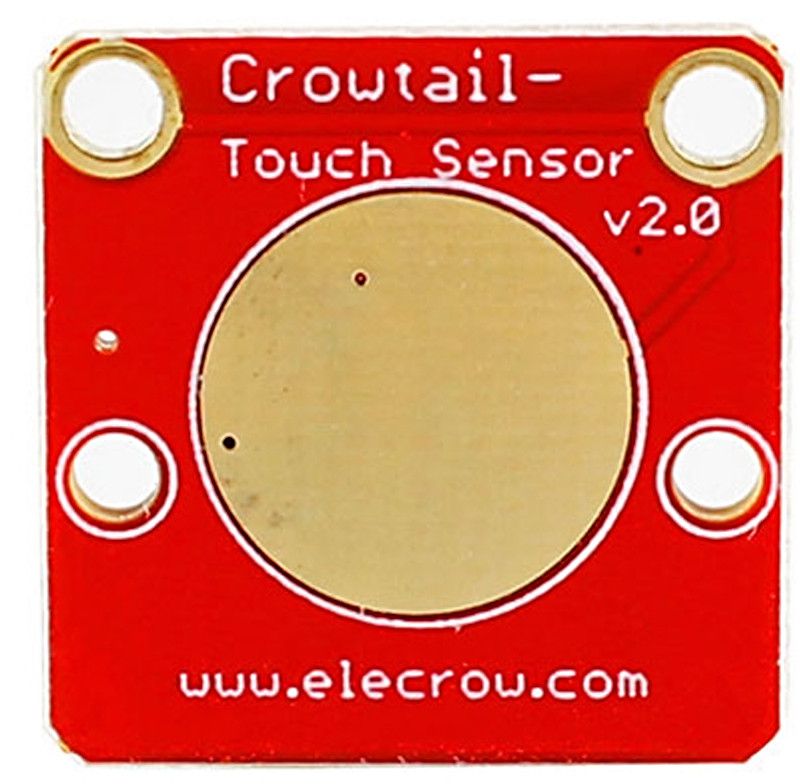

With the panel mount design, that is, the side of touch pad is smooth,Elecrow Crowtail- Touh Sensor is easy to install in projects, users can easily install it onto cases or other internal materials.

Speksit

• Connection Mode: D(Digital)
• 2.0-5.5V DC supply
• Low power consumption
• Response time max about 60mS at fast mode, 220mS at low power mode @VDD=3V
• Dimensions(mm):20.0(L)x20.0(W)x6.8(H)
