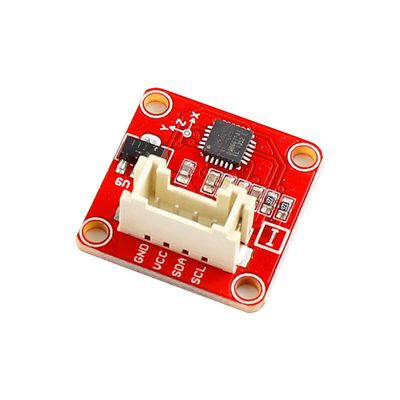

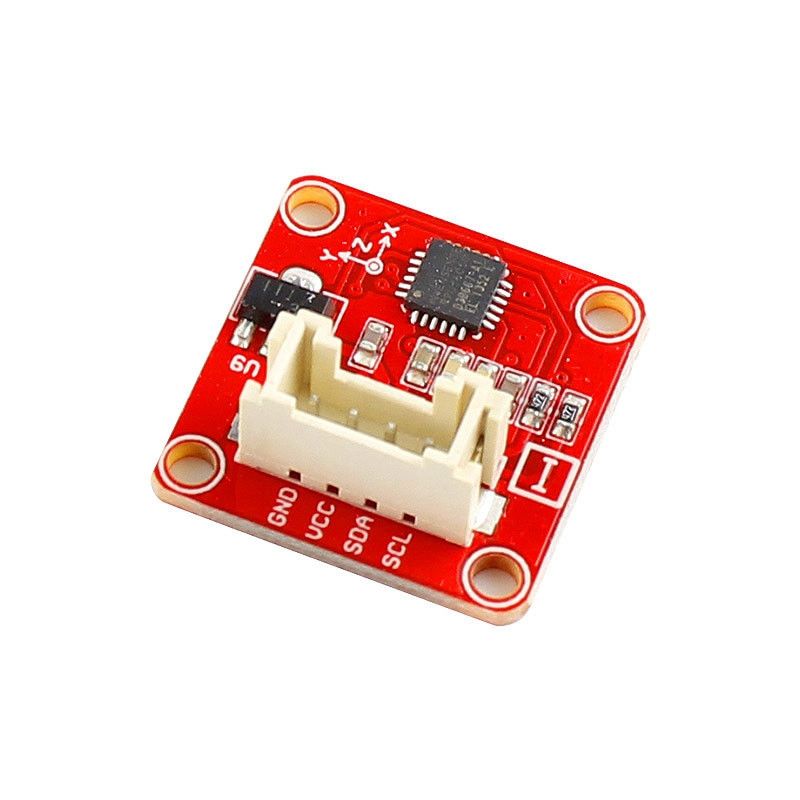

A Crowtail- MPU6050 Accelerometer &Gyro which has 3-Axis digital accelerometer and 3-Axis gyroscope,and a Digital Motion Processor hardware accelerator engine with an auxiliary I2C port that interfaces to 3 party digital sensors such as magnetometers.

Speksit

• Operating Voltage: 5.0 to 6.0V.
• Measure dimension: Acceleration: 3D, angular velocity: 3D, attitude angle: 3D .
• Current consumption: not more than 10mA.
• Measuring range：Acceleration:±16g, angular velocity: ±2000 degree per second.
• Measurement error：Acceleration:±6.1e-5g, angular velocity: ±7.6e-3 degree per second.
• Stability： Acceleration:0.001g, angular velocity: 0.02 degree per second.
• Data output frequency： 100Hz(115200bps)/ 20Hz(9600bps).
• Data interface： UART or I2C.
• RoHS/WEEE lead-free compliant
• Crowtail compatible interface
• Dimensions(mm):20.0(L)x20.0(W)x9.8(H)

Osalista

• Crowtail- MPU6050 Accelerometer & Gyrox1
• Crowtail cable x 1

Linkkivinkit

• Eagle file
• Arduino Code
