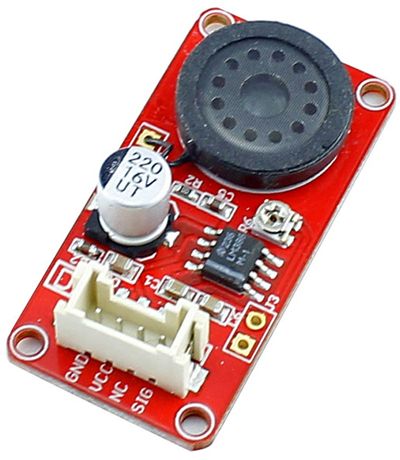

The Crowtail- Speaker is a module which consists of power amplification and voice outputs. The loudness can be adjusted by the on-board potentiometer. With different input frequency, the loud-speaker generated different tones. Coding the music into arduino, DIY your own music box!

Ominaisuudet

• Crowtail interface
• Volume Adjustable
• Dimensions(mm):40.0(L)x20.0(W)x9.8(H)

Speksit

• Working voltage: min. 4.0V, typ. 5V, max 5.5V
• Voltage gain: max. 46dB
• Band width: 20kHz

Osalista

• Crowtail- speaker x1
• Crowtail cable x 1

Linkkivinkit

• Elecrow Wiki link
