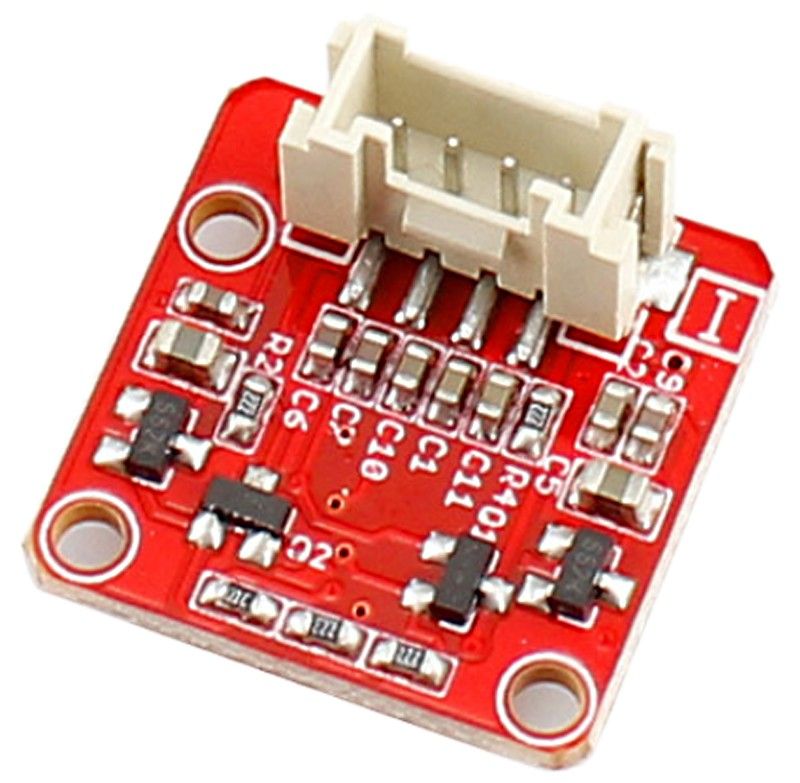

The sensor on Crowtail- Gesture is PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 basic gestures ,and these gestures information can be simply accessed via the I2C bus. Application: You can use Gesture as an input device to control another Cowtail, or a computer, mobile phone, smart car, robot, and more with a simple swipe of your hand.

Ominaisuudet

• Built-in proximity detection
• Various main boards support : Arduino UNO/Crowduino/Arduino Mega2560

Speksit

• Power supply: 5V
• Gesture speed in Normal Mode: 60°/s to 600°/s
• Ambient light immunity: < 100k Lux
• Gesture speed in Gaming Mode: 60°/s to 1200°/s
• Interface type: IIC interface up to 400 kbit/s
• Operating Temperature: -40°C to +85°C
• Dimensions: 20 * 20mm

Toimitus

• Crowtail- Gesture x 1
• Crowtail cable x 1

Linkkivinkit

• Elecrow Wiki link
