Huom! Toimittajan tiedoista poiketen tämä on X9C103S 10kohm versio.

In a variety of bridge circuits, due to vibration, shock and temperature and humidity and other environmental factors, the potentiometer position and parameters will always change, so our common potentiometer always need to constantly adjust, these to use Brought a lot of inconvenient place.

Ominaisuudet

• Crowtail interface
• Temperature compensation
• Digital and Programmable
• High resistance resolution
• No manual adjustment

Speksit

• Operating voltage (V): 5V
• Total resistance (kΩ): 10
• Terminal voltage (V): -5V ~ 5V
• Resistance increase mode: linear
• Interface: crowtail
• Operating current (mA): 3
• Temperature (℃): -40 ~ 85
• Resistance resolution: 1%
• Resistance range: 40R-100K
• Dimensions(mm): 28.5(L)x20.0(W)x9.8(H)

Osalista

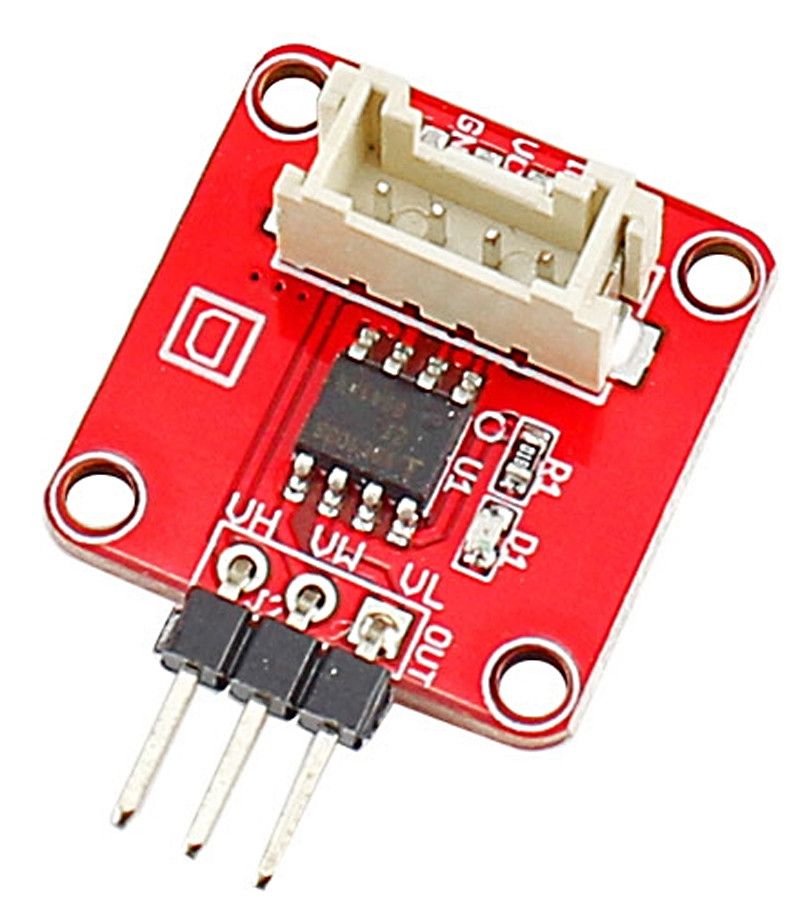

• Crowtail- Digital Programmable Potentiometer x1
• Crowtail cable x 1

Linkkivinkit

• X9C103S Datasheet
• Eagle files
