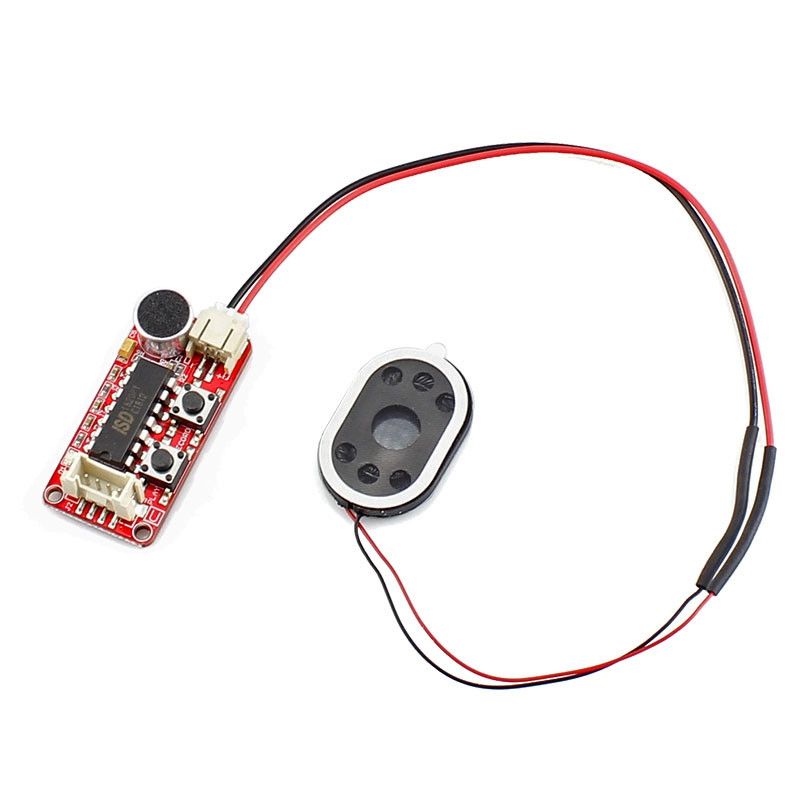

Crowtail - Recorder is based on the ISD1820P chip, and can record 8-20 secs of audio. It offers true single-chip voice recording and provides non-volatile storage. The recording time can be varied by changing the sampling resistor (R3) on the module's PCB. By default, the resistor on-board has a value of 100KΩ and thus the module offers a default recording time of 10 secs. The audio recording can be directly controlled by the on-board push button or by a micro-controller such as a Crowduino.

Features

• Low power consumption
• Non-volatile storage
• User-friendly operation
• Replace a single resistor to change recording duration and sampling frequency
• Add a resistor to set play cycle mode
• Ships with and connects to an 8Ω/1W mini-speaker
• Uses Standard 4-pin Crowtail Cables to connect to other Crowtail modules or a micro-controller such as the Crowduino.
• Dimensions(mm):40.0(L)x20.0(W)x9.8(H)

Package list

• Crowtail- Recorder x 1
• Crowtail cable x 1

Links

• Elecrow Wiki link
