This compact stepper motor with a 5:1 transmissioned gearing is suitable for applications in which you require a precisely and powerfully working stepper motor.

Speksit

• Specification: 42SHD0229-5G
• Shaft dimensions: Ø 8 x 15 mm (single shaft)
• Connection: 6-pole socket (JST), 4 Pins used
• Steps per revolution: 200 (motor shaft), 1000 (gear shaft)
• Gear ratio: 5 : 1
• Holding torque with gear box: 1.68 Nm
• Rated voltage: 2.8 V
• Rated current: 1.68 A
• Step angle (gear box shaft): 0.36°
• Amount of Phases: 2
• Phase resistance: 1.65 Ω
• Phase inductivity: 3.2 mH
• Isolation resistance: Min. 100 MΩ at 500 V DC
• Isolation class: B (130°)
• Rotational inertia: 75 g·cm²
• Operating temperature: -10 - 50 °C

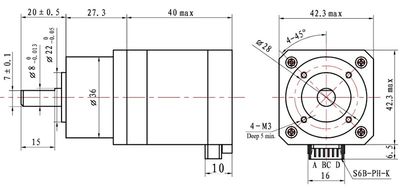

• Dimensions: 42 x 42 x 70 mm
• Items Shipped: NEMA 17-05 GM stepper motor
• EAN: 4250236818788
