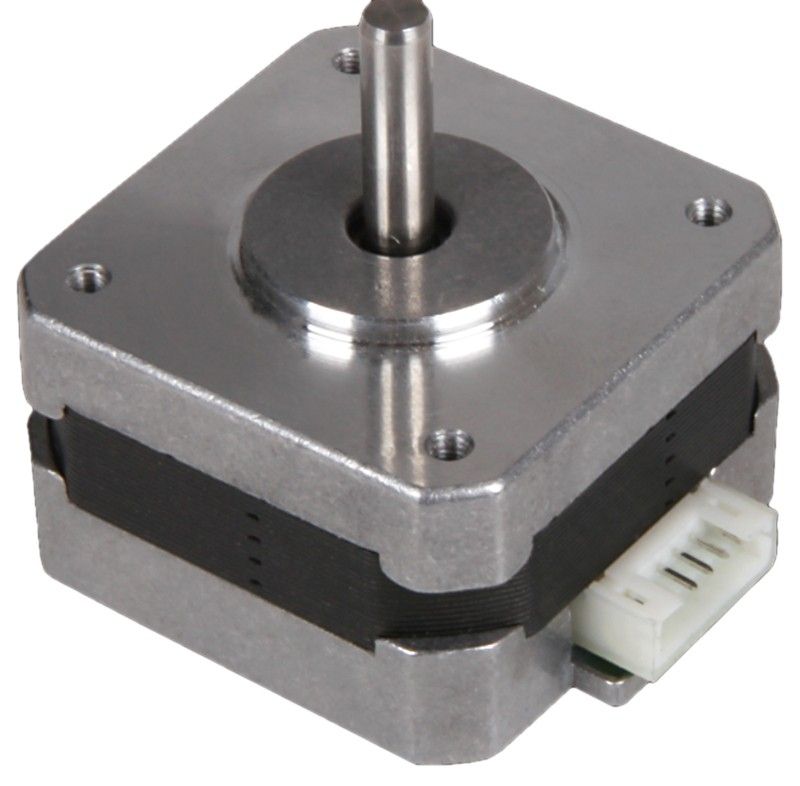

This small sized stepper motor is optimal for smaller tasks in automation, CNC (e. g. laser engraver, 3d printer, etc), or robotic. The small design and the little weight predestine this stepper motor for projects with limited space and / or limited weight capacity.

Speksit

• Shaft dimensions: Ø 5 (4,5) x 15 mm (single shaft)
• Specification: 35SHD0001-20B

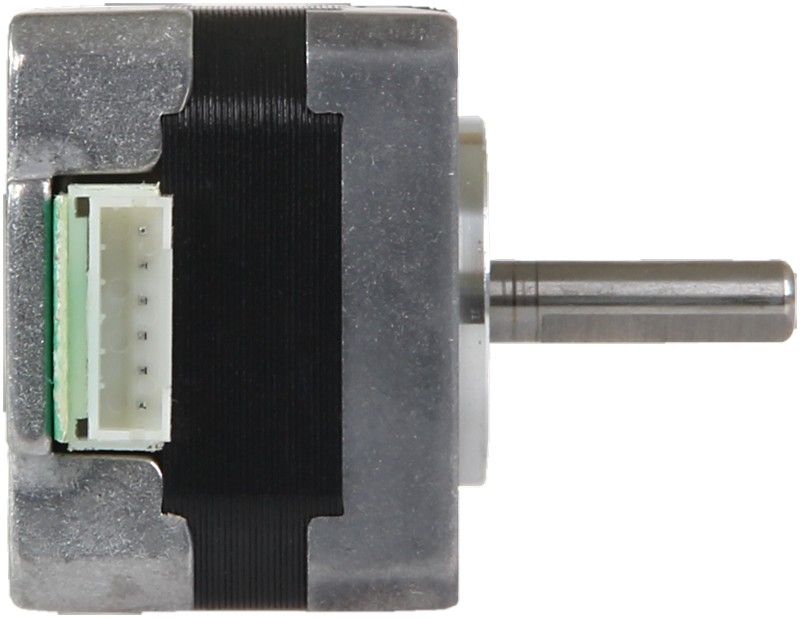

• Connection: 6 pole socket (JST), 4 Pins used
• Steps per revolution: 200
• Holding torque: 0.1 Nm
• Step angle: 1.8 °
• Rated voltage: 8 V
• Rated current: 0.4 A
• Amount of phases: 2
• Phase resistance: 20 Ω
• Phase inductivity: 20 mH
• Isolation resistance: min. 100 MΩ at 500 V
• Isolation class: B (130 ° C)
• Rotational inertia: 12 g·cm²
• Detent torque: 0.008 Nm
• Operating temperature: -10 - 50 ° C

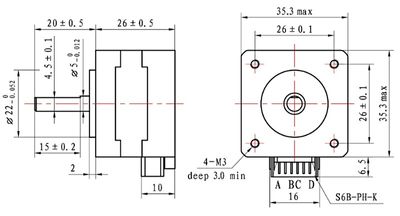

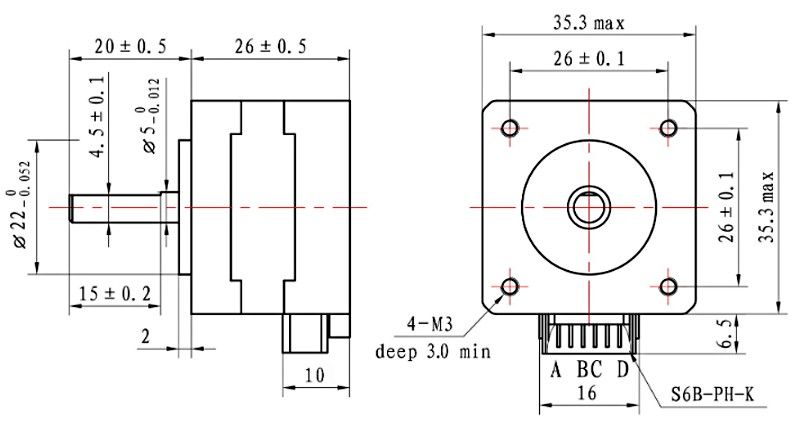

• Dimensions: 35 x 35 x 29 mm
• Weight: 120 g
• Items Shipped: NEMA14-01 stepper motor
• EAN: 4250236818740
