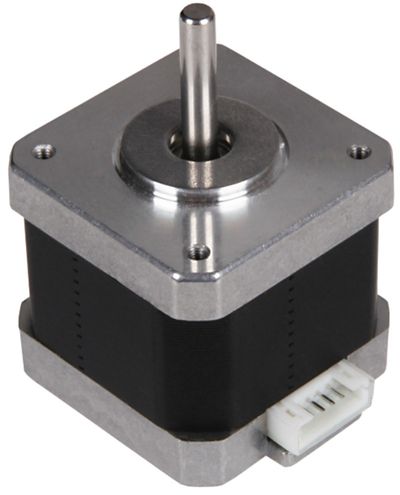

This small sized stepper motor is optimal for smaller tasks in automation, CNC (e. g. laser engraver, 3d printer, etc), or robotic. The small design and the little weight predestine this stepper motor for projects with limited space and / or limited weight capacity.

Speksit

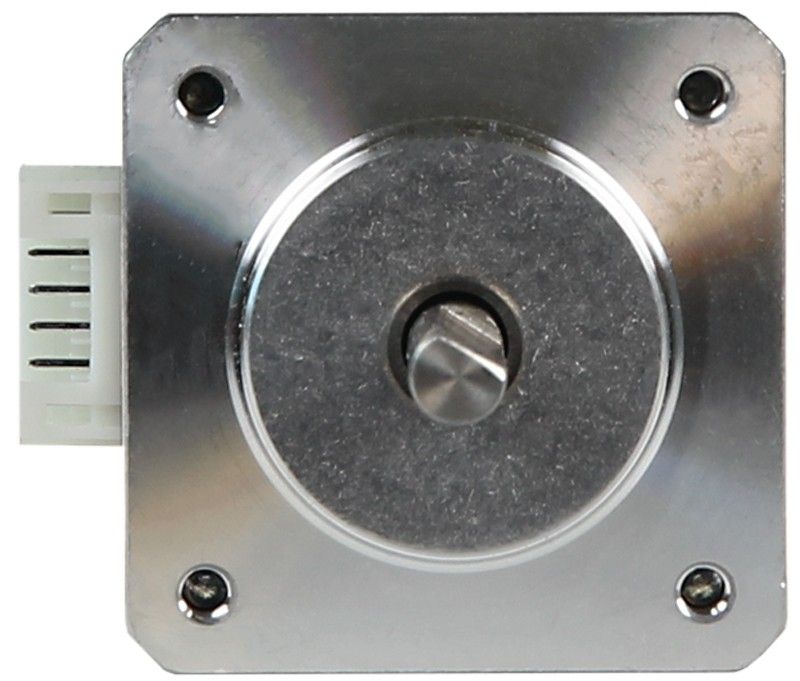

• Shaft diameter: Ø 5,0 (4,0) x 16 mm (single shaft)
• Specification: 35SHD0102-20B1
• Connection: 6 pole socket (JST), 4 Pins used
• Steps per revolution: 200
• Holding torque: 0.15 Nm
• Rated voltage: 4.35 V
• Rated current: 0.75 A
• Step angle: 1.8 °
• Amount of phases: 2
• Phase resistance: 5.8 Ω
• Phase inductivity: 9.5 mH
• Phase resistance: min. 100 MΩ at 500 V
• Isolation class: B (130°)
• Rotational interia: 14 g·cm²
• Detent torque: 0.012 Nm
• Operating temperature: -10 - 50 °C

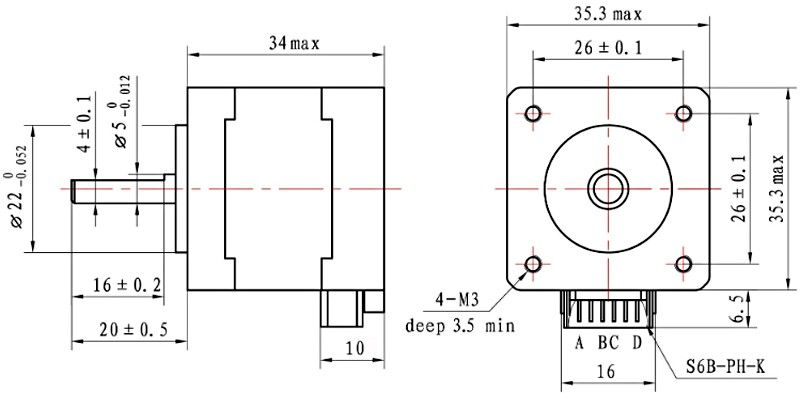

• Dimensions: 35 x 35 x 35 mm
• Weight: 180 g
• Items Shipped: NEMA14-02 stepper motor
• EAN: 4250236818757
