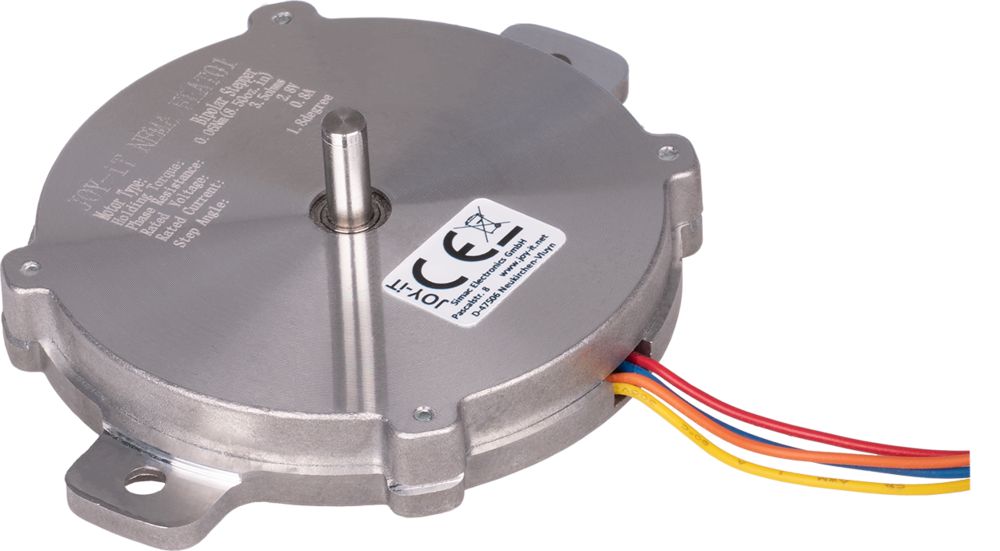

These flat stepper motors have especially been developed for the feeders in semiconductor production.

These stepper motors can be used very well in other applications with limited assembly space.

Specifications

• Shaft dimensions: Ø 4 x 10 mm
• Interface connections: 4 pin JST cable connector
• Cable length: 70 mm
• Special characteristics: Ultraslim Design
• Holding torque: 60 mNm
• Rated voltage: 2.8 V
• Rated current: 0.8 A
• Step angle: 1.8° ±5 %
• No. of phases: 2
• Phase resistance: 3.5 Ω
• Phase inductivity: 1.8 mH
• Isolation resistance: 100 MΩ min. @500 V DC
• Isolation class: B (130 °C)
• Rotational inertia: 15 g·cm²
• Detent torque: 8 mNm
• Permitted operating temperature: -10 °C to 50 °C

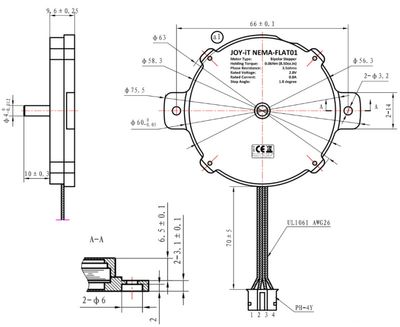

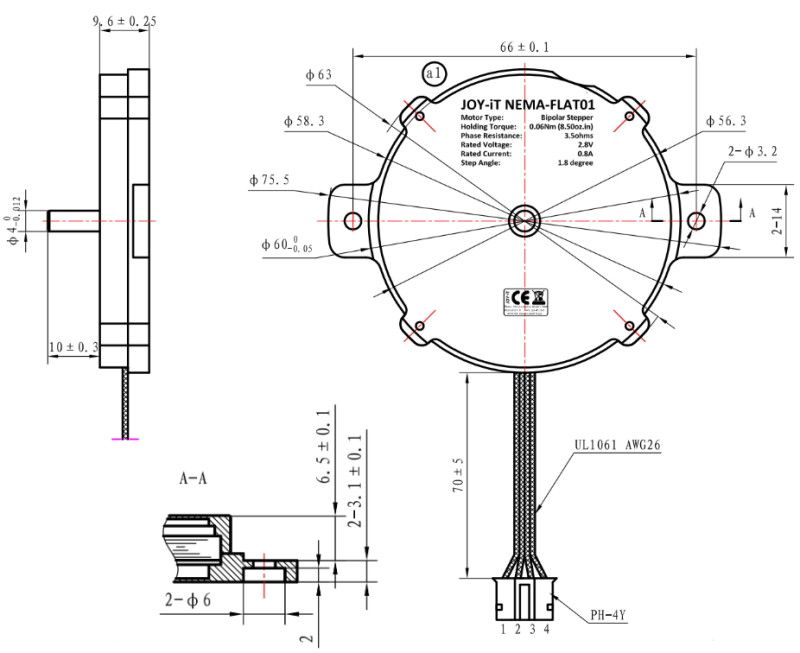

• Dimensions: Ø 60 x 9,6 mm
• Weight: 75 g
• Items Shipped: 1x NEMA-FLAT01 stepper motor
• EAN: 4250236821641
