PRODUCT DETAILS

Features

• Implements CAN V2.0B at up to 1 Mb/s
• Industrial standard 9 pin sub-D connector

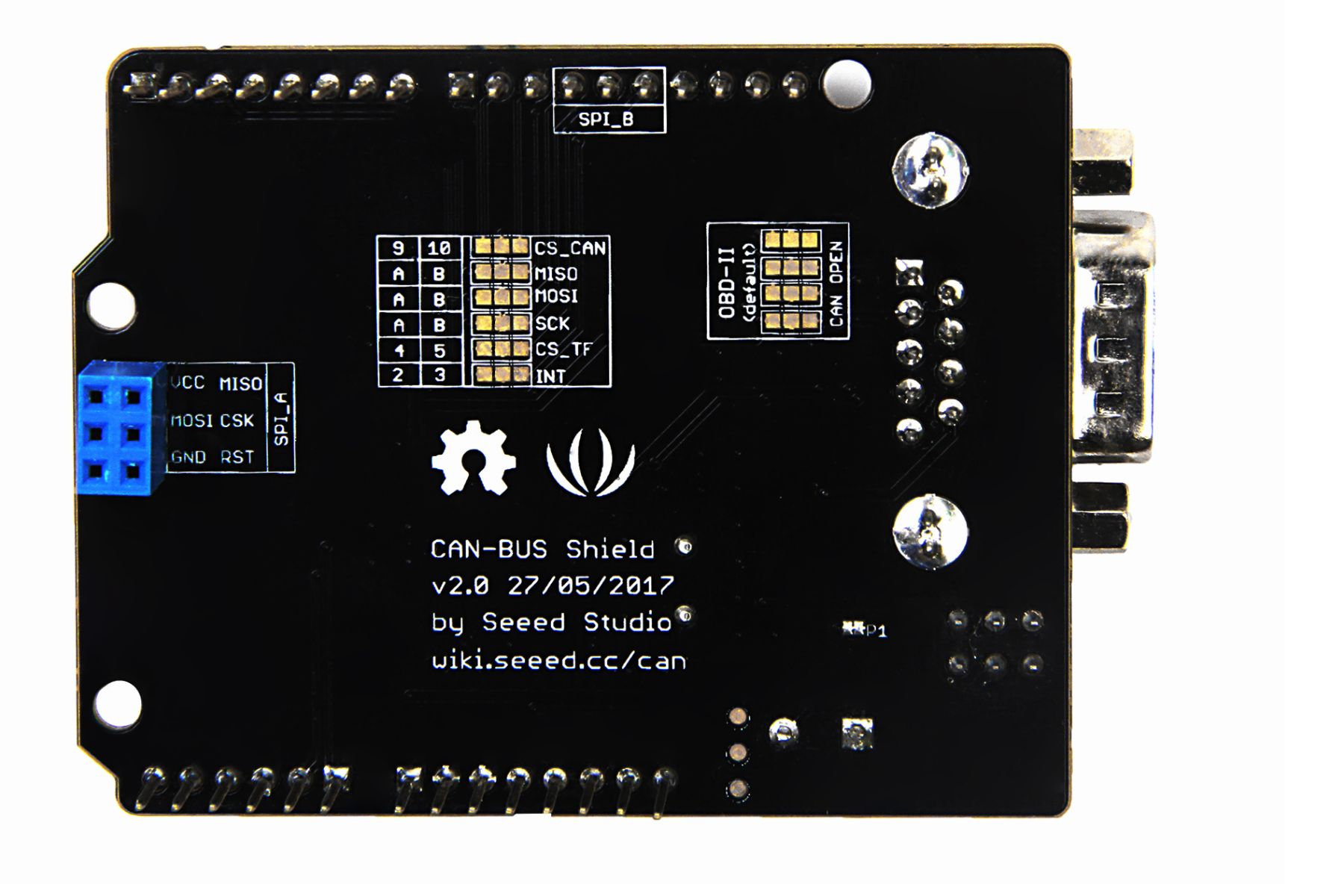

• OBD-II and CAN standard pinout selectable.
• Changeable chip select pin
• Changeable CS pin for TF card slot
• Changeable INT pin
• Screw terminal that easily to connect CAN_H and CAN_L
• Arduino Uno pin headers
• Micro SD card holder
• 2 Grove connectors (I2C and UART)
• SPI Interface up to 10 MHz
• Standard (11 bit) and extended (29 bit) data and remote frames
• Two receive buffers with prioritized message storage

Description

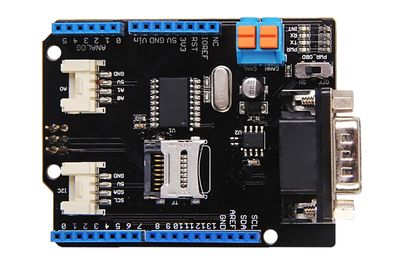

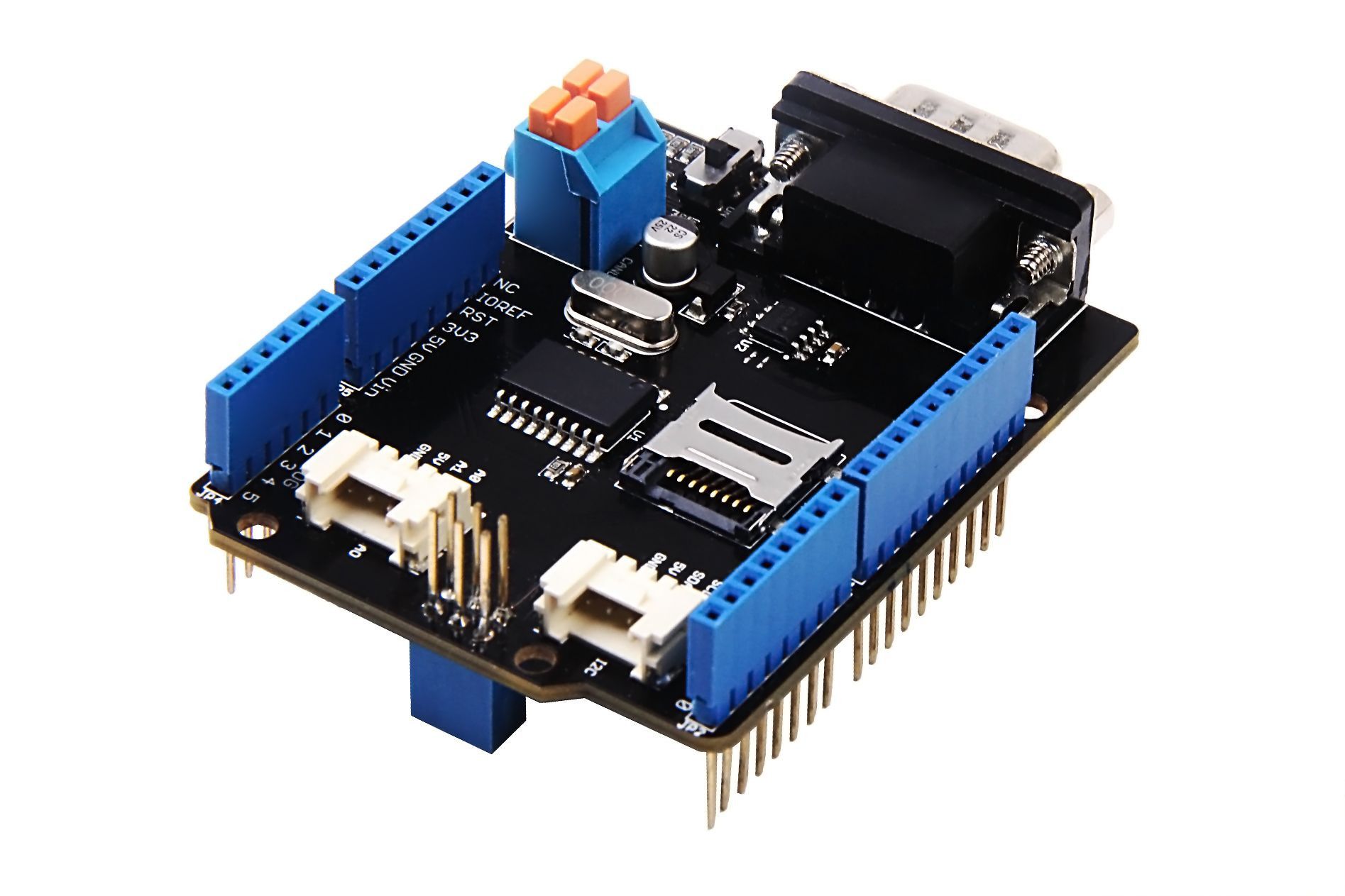

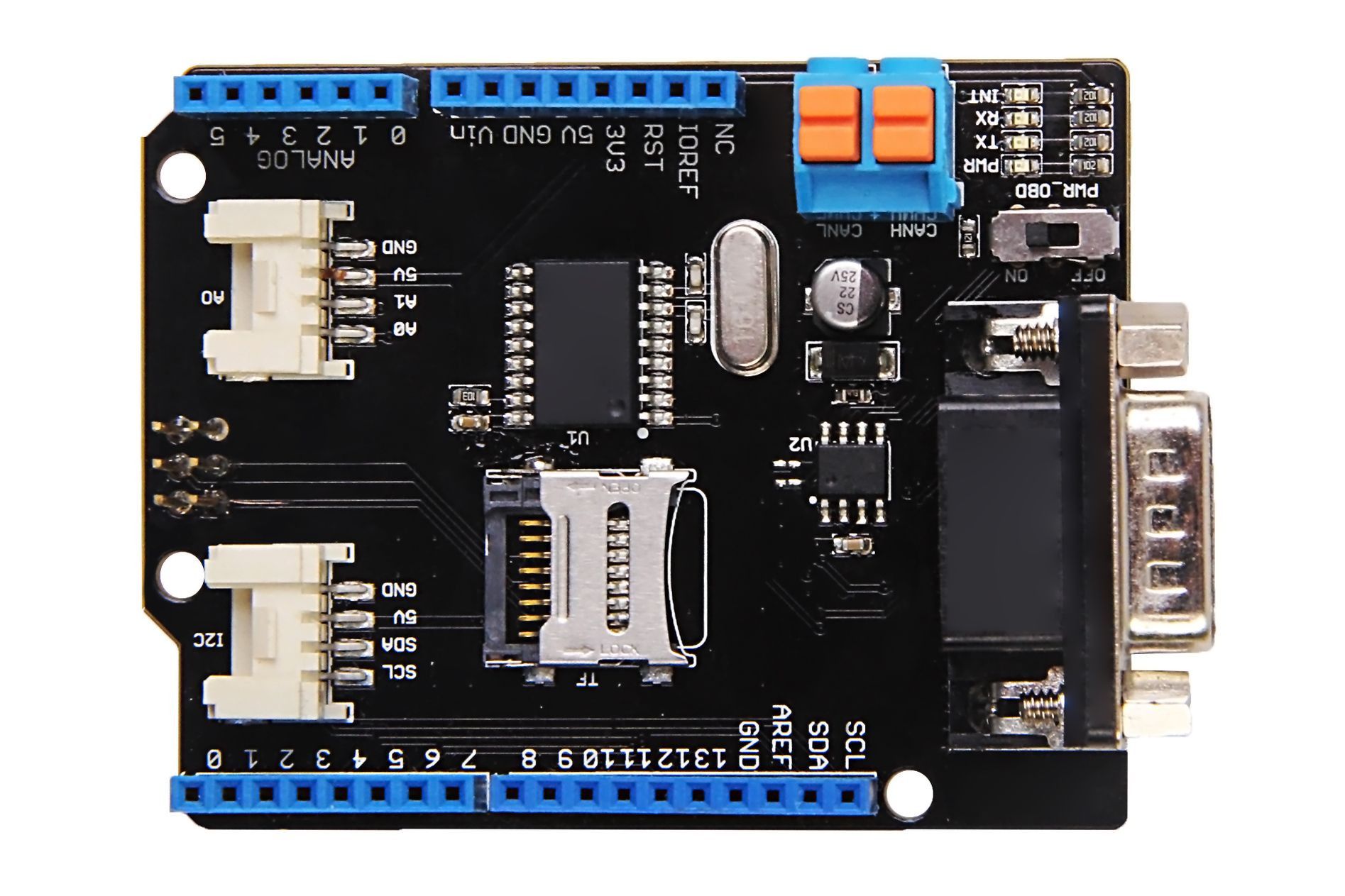

Hacking vehicles becomes easy with CAN BUS and Arduino! CAN-BUS Shield which adopts MCP2515 CAN-BUS controller with SPI interface and MCP2551 CAN transceiver to give you Arduino/Seeeduino CAN-BUS capability. With the help of CAN-BUS Shield, you can use easily interact with your car by using Arduino boards.

CAN-BUS is a common industrial bus because of its long travel distance, medium communication speed, and high reliability. It is commonly found on modern machine tools and as an automotive diagnostic bus.

CAN-BUS Shield Work well with Arduino UNO (ATmega328), Arduino Mega (ATmega1280/2560) as well as Arduino Leonardo (ATmega32U4) and LinkIt One, if you want to use it with the others board, please contact us for more details.

Technical details

Part List
