LinkStar-H68K-0232 REITITIN 2/32GB

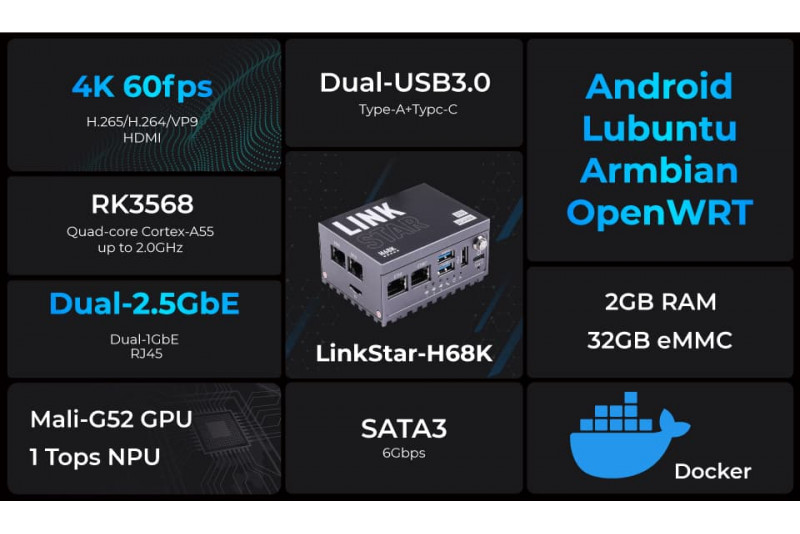

LinkStar-H68K equips quad-core Cortex-A55 RK3568 chip, featuring dual-1G Ethernet and dual-2.5G Ethernet as 4 network interfaces overall, assembled in one portable metal box, designed for high-speed network. It comes with sufficient expansion ability and media player functionality, presenting you with a fully functional device for office work and home entertainment, as well as anywhere you travel around.

Note:

• The current Android and Lubuntu 20.04 firmware does not support the MT7921 WIFI module.
• This product does not come with a power supply, please get it with an DC POWER SUPPLY 12V 1,6A 19W if needed.

Feature

• Lightning-fast Network Ports: Dual 2.5Gbps Ethernet & dual 1Gbps Ethernet, 4 interfaces overall for fast speed router deployment
• 4K Multimedia Player: Pre-installed Android 11 OS, mounted with one HDMI 2.0 port for 4K@60fps display with HDR support
• High Storage Capacity: Equip onboard 32Gb eMMC, an SD card slot, and a USB 3.0 Type-C for massive storage, along with one USB 3.0 and two USB 2.0 Type-A ports
• Multiple Operating Systems Supported: Android, Lubuntu 20.04, OpenWRT,Armbian
• Pocket-sized Metal Box: Carry everywhere, built around with metal for passive heat dissipation

Application

• VPN router
• NAS
• Remote control/work
• Game Server
• Block advertising
• Print server
• Firewall
• Tethering

Specification

Hardware Overview

Part List

• 1 x LinkStar-H68K-0232

Links

• RK3568 Datasheet
• Lubuntu 20.04
• Wiki - LinkStar Series Operating System Installation
• Wiki - LinkStar Series Getting Started
• Deploying Home Assistant on Seeed H68K/reRouter with OpenWRT
