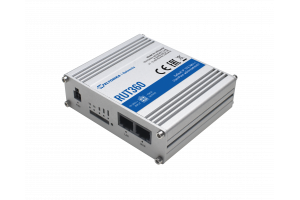

Teltonika RUT360 4G/LTE-A CAT6/WiFi REITITIN

Description

RUT360 is an updated version of our all-time best-seller RUT240. This compact industrial cellular router offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks.

RUT360 is equipped with two Ethernet interfaces, 802.11 b/g/n WiFi, and 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps.

Unique programming, remote monitoring, and security features make RUT360 perfect for  IoT and M2M applications, where secure and reliable connectivity is a must. Carrier aggregation functionality makes this compact device irreplaceable in areas or applications where cellular data speeds are limited.

Key features

• 4G LTE CAT 6 - Cellular speeds up to 300Mbps with Carrier Aggregation
• WIFI - 802.11 b/g/n WiFi
• COMPACTNESS - Small size - easy integration anywhere
• DURABILITY - Rugged aluminium housing
• SECURITY - Firewall and numerous VPN services, including OpenVPN, IPsec, PPTP, L2TP & SSTP
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile 4G (LTE) – Cat 6 DL; DC-HSDPA; HSUPA; WCDMA
• CPU Qualcom MIPS 24Kc; 650 MHz
• Memory 128 MB, DDR2 RAM
• Storage 16 MB, SPI Flash (Optional up to 256 MB)
• Ethernet 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
• Power supply 9 – 30 VDC, 4 pin DC connector
• Inputs/Outputs 1 x Digital Input, 1 x Digital Open Collector Output on power connector
• Connectors 1 x 4 pin DC, 2 x Ethernet, 2 x Mobile SMA, 2 x WiFi RP-SMA
• SIM 1 x external SIM holder
• Status LEDs 2 x connection type status, 3 x connection strength, 2 x LAN status, 1 x Power
• Operating temperature -40 °C to 75 °C
• Housing Aluminium housing and panels
• Dimensions 100 mm x 30 mm x 85 mm

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Multiple PDN: Possibility to use different PDNs for multiple network access and services
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP
• Networking features: NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Unique networking features: VLAN, Load balancing, Mobile quota control, WEB Filter, Network Backup, Auto Failover
• Connection monitoring: Ping Reboot, Periodic Reboot, Wget Reboot, LCP and ICMP for link inspection
• Authetication: Pre-shared key, digital certificates, X.509 certificates
• Keep settings: Update FW without losing current configuration
• Monitoring & Management: WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided

Standard package contains

• Router RUT360
• 18 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box

Links

• RUT360 product page
• RUT360 Wiki page

Video
