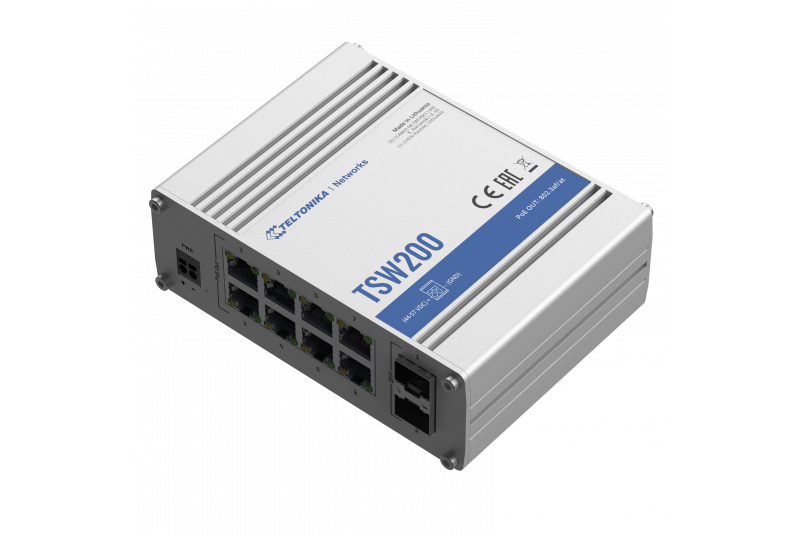

Teltonika TSW200 2xSFP+8xCAT6(PoE) ETHERNET KYTKIN

TSW200

2 kappaletta

Varastossa

Valmistajan kotisivu

101,66 €

Teltonika TSW200 - kahdeksan gigabittisen PoE-portin ja kahden pitkän matkan kuituoptisella SFP-portilla varustettu teollinen hallitsematon Ethernet-kytkin. Power-over-Ethernet (PoE) tukee 802.3af- ja 802.3at-standardeja.

Description

  • TSW200 is industrial unmanaged switch from Teltonika Networks.
  • TSW200 is equipped with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports which support IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
  • Classified as power source equipment (PSE), it enables centralization of the power supply, providing up to 30 watts per port and reducing the effort for installing power. It has 10/100/1000 Mbps Ethernet ports to provide an economical high-bandwidth solution for your industrial Ethernet network.
  • This rugged unmanaged industrial switch is ideal for professional high bandwidth applications where it is necessary to provide both: reliable data connection and power supply.

Key features

  • POE+ - 8x PoE ports with 802.3af and 802.3at support
  • SFP - 2 x SFP ports for long-range Fiber-optic communication
  • ETHERNET - 8 x Gigabit Ethernet with speeds up to 1000 Mbps
  • POWER BUDGET - Total power budget at PSE up to 240 W
  • DURABILITY - Rugged aluminium housing
  • MOUNTING - DIN rail and surface mounting options

Specifications

HARDWARE

  • Power connector: 2 pin industrial DC power socket
  • Input voltage range: 7-57 VDC
  • Input voltage range for PoE: 44-57 VDC
  • Power consumption: Idle: 1.81W, Max: 5.5W (no PoE device connected)
  • PoE standard: 802.3af/at (up to 30 W per port, total power budget - 240 W)
  • Ethernet: 8 x 10/100/1000 Mbps Ethernet ports
  • SFP: 2 x SFP ports for Optical interfaces
  • Status LEDs: 16 x Ethernet, 1 x Power, 2 x SFP activity
  • Ingress protection rating: IP30
  • Operating temperature: -40 °C to 75 °C
  • Housing: Aluminium housing with wall or DIN rail mounting option and grounding capability
  • Dimensions: 132 x 44.2 x 95.1 mm

PERFORMANCE SPECIFICATIONS

  • Bandwidth: Bandwidth 20 Gbps
  • Packet buffer: 128 KB
  • Jumbo frame support: 9216 bytes
  • MAC address table size: 2K entries
  • Auto MDI/MDI-X Cable Detection: Yes

Standard package contains

  • TSW200
  • QSG (Quick Start Guide)
  • Packaging box

Note! Power supply is not included! Click here for purchase

Links

Video

Klikkaa tarkemmat tiedot
ValmistajaTeltonika Networks
Valmistajan malliTSW200000010
Tehdastoimitusaika3 viikkoa
Mitat132 x 44.2 x 95.1 mm
Paino456 g
IP suojausluokkaIP30
Käyttölämpötila-40...+75°C
