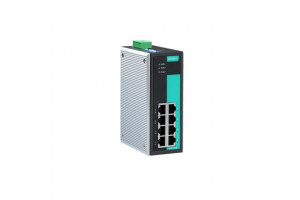

Moxa Gigabit Ethernet kytkin, 8x RJ45

Ominaisuudet:

• Full Gigabit Ethernet ports
• Supports 19.6 KB jumbo frames
• Relay output warning for power failure and port break alarm
• Broadcast storm protection
• IP30-rated metal housing
• -10 to 60°C operating temperature range

Speksit:

• IEEE 802.3 for 10BaseT
• IEEE 802.3ab for 1000BaseT(X)
• IEEE 802.3u for 100BaseT(X)
• IEEE 802.3x for flow control
• IEEE 802.3z for 1000BaseX
• IEEE 802.3az for Energy-Efficient Ethernet

Standardit ja sertifikaatit:

• Safety

   EN 60950-1, UL 508, EN 60950-1 (LVD)

• EMC

• EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class A

• EMS

           IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
           IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
           IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
           IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
           IEC 61000-4-6 CS: 10 V
           IEC 61000-4-8 PFMF

• Shock

  IEC 60068-2-27

• Vibration

  IEC 60068-2-6

• Freefall

  IEC 60068-2-32

• Hazardous Locations

          ATEX, Class I Division 2

• Maritime

           ABS, DNV-GL, LR, NK

• Railway

           EN 50121-4

Tulojännite:

• 12/24/48 VDC, Redundant dual inputs
