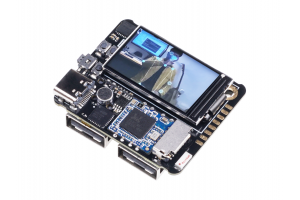

Seeed Studio 114992462 - Quantum Tiny Linux Development Kit – With SoM and Expansion Board

Description

Quantum Tiny Linux Dev. Kit is possibly the smallest Linux development board on the market, a highly integrated kit with quad-core CPU that can run Linux at only 40mm x 35mm, which also includes network connectivity. It is suitable for scenarios such as as a personal server, intelligent voice assistant, and for robotic development.

The SoM is called Quark-N, based on Allwinner H3, Quad-core Cortex-A7, and ARM Mali400 MP2 GPU. The 6-layer high-density gold PCB design integrates a complete ARM-Linux system (CPU, DDR, eMMC) in a 2x3cm space. Also, most of the GPIO is led out by the board through the M.2 Key-A golden finger interface to minimize the bottom board design difficulty. You can easily design your own base plate with two-layer boards to realize your interesting ideas.

The carrier board is called Atom-N, and Quark-N is connected to Atom-N through the M.2 interface. Atom-N leads out a row of golden finger pins to realize I/O expansion, expand SPI, I2C, UART, GPIO, and other interfaces to facilitate the completion of your own design. Also, it is equipped with a microphone, MPU6050 motion sensor (accelerometer and gyroscope), onboard 4 buttons (GPIO-KEY, Uboot, Recovery, Reset), IPS display, Wi-Fi/Bluetooth connectivity which greatly expands the possibilities with this product.

Features

  • Ultra-small (31mmx22mm) and highly integrated Quad-core Cortex-A7 Linux SoM (System on Module)
  • Expansion board (40mmx35mm) with rich peripherals and interfaces: Microphone, Gyroscope, Accelerometer,4 x Buttons (GPIO-KEY, Uboot, Recovery, Reset) and a TFT display
  • Integrates a complete ARM-Linux system for advanced development
  • Ability to design your own baseboard due to the M.2 interface
  • Wide range of applications such as a personal server, intelligent voice assistant, and robotic development.

Specifications

SpecificationDetails
Quark-N SoM
CPUAllwinner H3, Quad-core Cortex-A7 @ 1GHz
GPUARM Mali400 MP2 GPU
Memory512MB LPDDR3 RAM
Storage16GB eMMC
InterfacesEthernet, SPI, I2C, UART, Reusable GPIO, MIC, LINEOUT
GPIO2.0mm pitch 26 pin-header, include USB OTG, USB-Serial, I2C, UART, SPI, I2S, GPIO
PCB6-layer high-density immersion gold design
Working temperature0-80°C
Size31mmx22mm

Atom-N Expansion Board
SlotM.2 interface for Quark-N
USBUSB 2.0×2 USB Type-C×1
Wireless connectivityRTL8723BU:
Wi-Fi: IEEE 802.11 b/g/n @2.4GHz
Bluetooth: BT V2.1/ BT V3.0/ BT V4.0
Onboard Peripherals1 x Microphone
1 x MPU6050 motion sensor (gyroscope + accelerometer)
4 x Buttons (GPIO-KEY, Uboot, Recovery, Reset)
1 x TFT display
External StorageMicro-SD card slot
Size40mm*35mm

Applications

  • Microcomputer
  • Personal website server
  • Programming learning such as Python
  • Image processing
  • Robotics
  • Voice assistant
  • Smart home hub

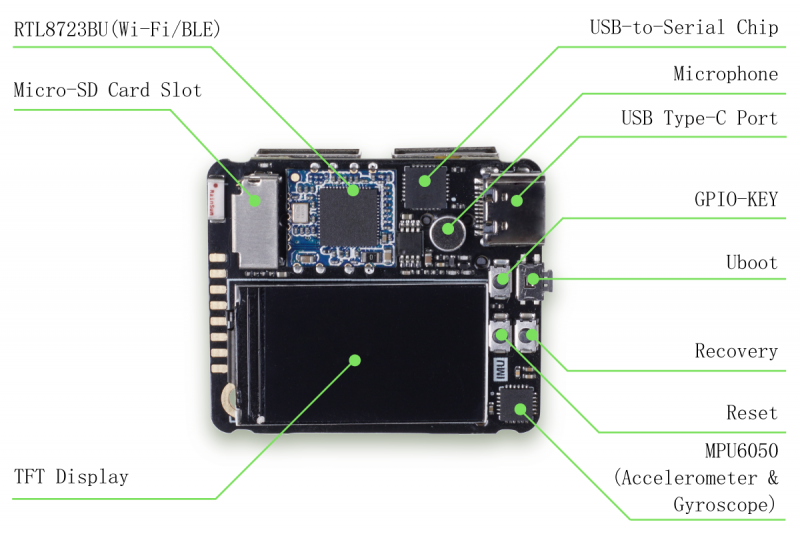

Hardware Overview

Part List

  • 1 x Quantum Tiny Linux Development Kit – With SoM and Expansion Board

Links

Video

Klikkaa tarkemmat tiedot
ValmistajaSeeed Studio
Valmistajan malli114992462
Kellotaajuus1,0GHz
Muisti RAM512MB
Muisti FLASH16GB
VerkkoliitännätEthernet,BT,Wifi
