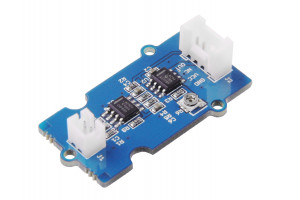

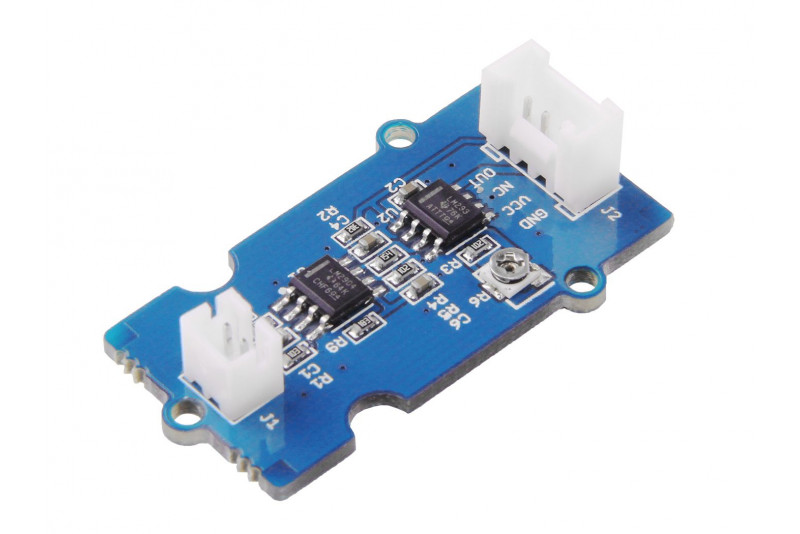

Grove Piezo Vibration Sensor

SEEED 101020031

2 kappaletta

Varastossa

Huom: Viimeinen tuote varastossa!

Valmistajan kotisivu

12,46 €

Seeed Studio 101020031 - Grove - Piezo Vibration Sensor - Capable of withstand strong impact. Wide dynamic range from 0.001Hz to 1000MHz. Adjustable sensitivity.

PRODUCT DETAILS

Grove- Piezo Vibration Sensor is suitable for measurements of flexibility, vibration, impact and touch. The module is based on PZT film sensor LDT0-028. When the sensor moves back and forth, a certain voltage will be created by the voltage comparator inside of it.

Therefore, outputs high & low levels. In spite of the fact that it has a high receptivity for strong impacts, a wide dynamic range (0.001Hz~1000MHz) also guarantees excellent measuring performance. Finally, you can adjust its sensitivity by adjusting the potentiometer with a screw.

Features

  • Standard grove socket

  • Wide dynamic range：0.001Hz~1000MHz

  • Adjustable sensitivity

  • High receptivity for strong impact

Applications

  • Vibration Sensing in Washing Machine

  • Low Power Wake-up Switch

  • Low-Cost Vibration Sensing

  • Car Alarms

  • Body Movement

  • Security Systems

Technical details

Dimensions40mm x20mm x11.5mm
WeightG.W 12g
BatteryExclude

Part List

Grove - Piezo Vibration Sensor1

Links

Klikkaa tarkemmat tiedot
ValmistajaSeeed Studio
Valmistajan malli101020031
