Seeed Studio 110990037 - Grove Female Header - DIP-4P-2.0mm-90D-10 Pcs
|
SEEED 110990037
7 kappale kappaletta
Varastossa
Huom: Viimeinen tuote varastossa!
Tulossa:
Seeed Studio 110990037 - Grove Female Header - DIP-4P-2.0mm-90D-10 Pcs

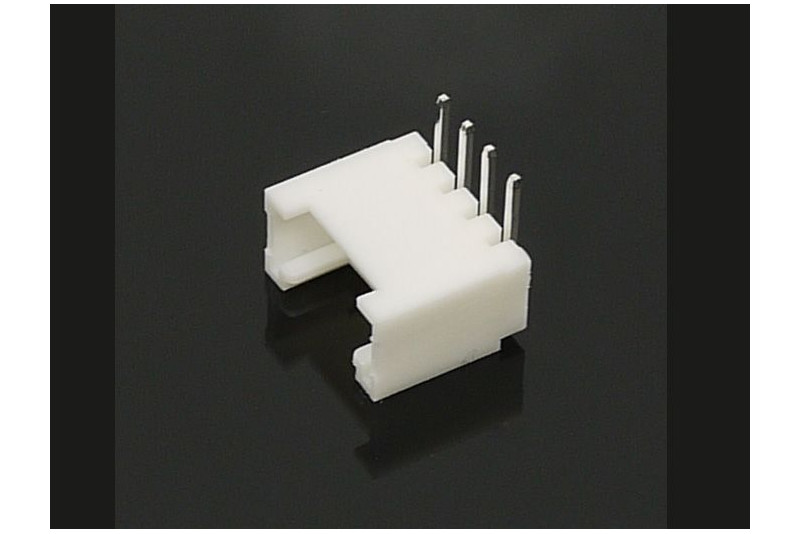

This is a 4-pin, 2.0mm pitch, 90D, DIP Grove Female Header pack with 10pcs, which is suitable to solder onto a module and enable it to connect with other development boards in the Grove Ecosystem.
Note: This female header has a pitch of 2.0mm.
Seeed Studio offers the following types of Grove Female Headers.
SKU | Header | Mounting Type | Pieces per SKU |
---|---|---|---|
SEEED 110990030 | Female Header (4-pin/ 2mm) | DIP | 10 |
SEEED 110990037 | Female Header (4-pin/ 2mm/ 90D) | DIP | 10 |
SEEED 114020163 | Female Header (4-pin/ 2mm) | SMD | 20 |
SEEED 114020164 | Female Header (4-pin/ 2mm/ 90D) | SMD | 20 |

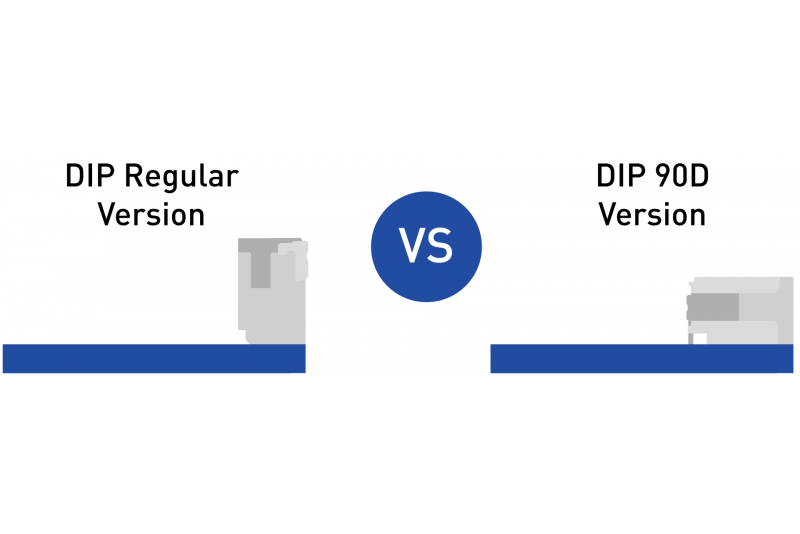

There are mainly two different versions of the Grove Female Header. They are the regular and the 90D version. When the regular one is soldered onto a PCB, the header sits perpendicular to the PCB, whereas when the 90D version is soldered onto a PCB, the header sits parallel to the PCB.
When using this Female Header, you can use the following Grove cables to prototype your projects.
Klikkaa tarkemmat tiedot | |
Valmistaja | Seeed Studio |
Valmistajan malli | 110990037 |
Määrä | 10kpl / pussi |
Rasteri | R2 |
Napaluku | 4 |
