Grove Mech Keycap, button, LED Key

SEEED 111020049

2 kappaletta

Varastossa

Huom: Viimeinen tuote varastossa!

Valmistajan kotisivu

7,41 €

Seeed Studio 111020049 - Grove - Mech Keycap

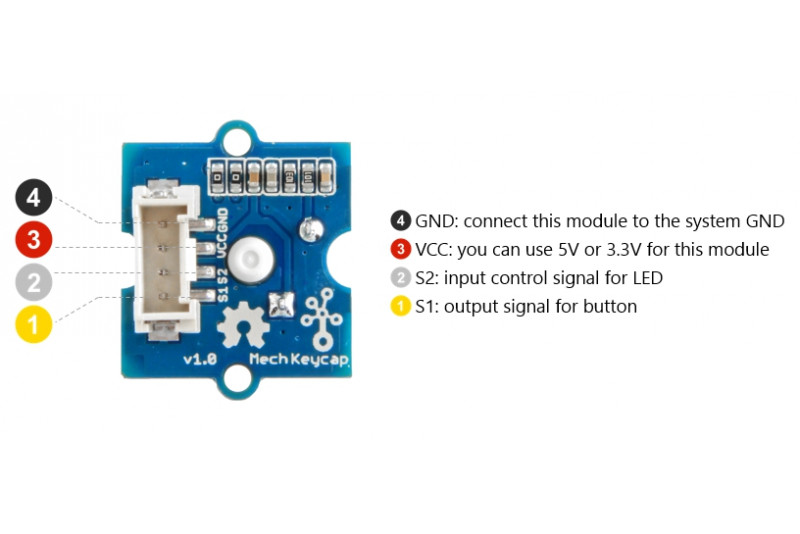

The Grove-Mech keycap is a mechanical switch with a build-in LED. The 255 full color RGB LED makes it simple and easy to show the statues of your switch. This keycap is very reliable with 20,000,000 times press operating life.

You will find that this is an interesting and stable module to make some really fun project or product. Actually, you even can make a mechanical keyboard using several Grove-Mech keycaps.

Features

  • Programmable LED
  • Reliable mechanical structure
  • Extremely long operating Life

Typical Applications

  • automotive devices
  • visual devices
  • home electrical appliances
  • information devices

Technical details

Dimensions20mm x20mm x30mm
WeightG.W 10.3g
BatteryExclude
Working Voltage3.3V / 5V
Insulation Resistance100MΩ Min.
Contract Resistance200 mΩ Max.
Operating Life without Load20,000,000 (times)

Part List

Grove - Mech Keycap1
Grove Cable1

Links

Video

Klikkaa tarkemmat tiedot
ValmistajaSeeed Studio
Valmistajan malli111020049
Mitat20 x 20 x 30 mm
