Crowtail VIRTAMITTAUS

Huom! Ei ammattikäyttöön.

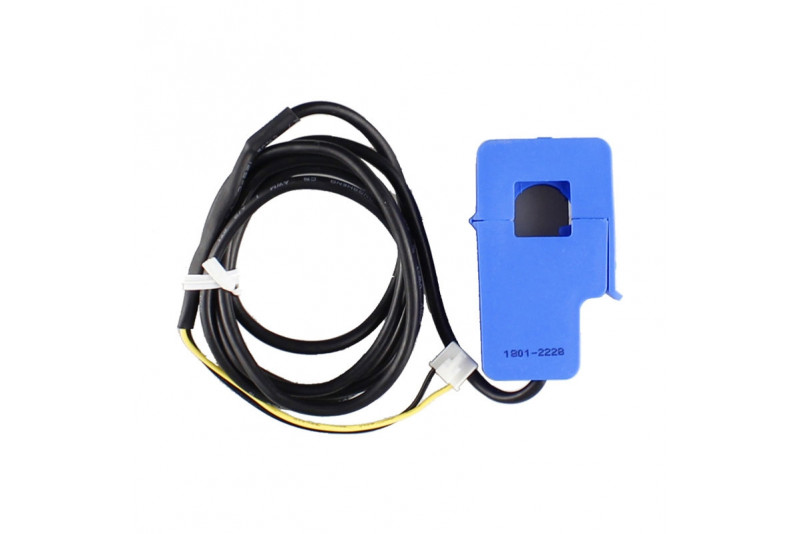

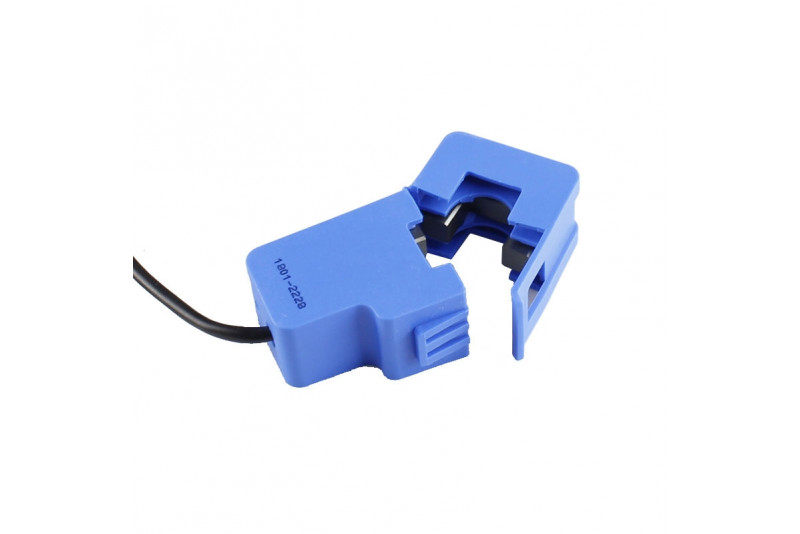

A NEW member of our Crowtail, believe it can promote your work efficiency. The AC current sensor is based on Current transformers, it transforms the big AC current to little, and then convert to voltage with the build-in resistor so users can get the AC current value via measuring the output voltage with any microcontroller such as Arduino. The split core type makes this sensor suitable for DIY usage such as energy monitoring for house & building.

Speksit

• Crowtail compatible interface
• Input Current: 0~30A AC
• Output Mode: 0~1V
• Non-linearity: ±1%
• Turn Ratio: 1800:1
• Building sample resistance: 62 ohm
• Resistance Grade: Grade B
• Work Temperature: -25°C ~ ﹢70°C
• Dielectric Strength(between shell and output): 1000V AC/1min 5mA
• Leading Wire in Length: 1m
• Open Size: 13mm x 13mm

Osalista

• Crowtail-Current Sensor Kit x 1

Linkkivinkit

• CT sensors - An introduction
• CT sensors - Interfacing with an Arduino
• How to build an Arduino energy monitor
• Wiki link (User manual)
