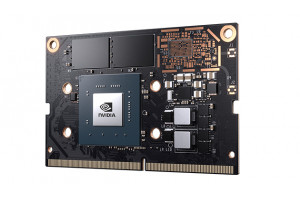

NVIDIA Jetson Nano SOM ARM+GPU 4GB+16GB Näytä suurempana

NVIDIA Jetson Nano SOM ARM+GPU 4GB+16GB

900134480020000

6 kappaletta

Varastossa

187,70 €

NVIDIA 900-13448-0020-000 - NVIDIA Jetson Nano System-on-Module Maxwell GPU + ARM Cortex-A57 + 4GB LPDDR4 + 16GB eMMC

NVIDIA Jetson Nano Module is an SoM of the Jetson Nano Development Kit used to assemble an SBC with an extension board to produce graphic AI applications. The SoM allows users to run AI frameworks and models for image classification, object detection, segmentation, and speech processing applications. The NVIDIA Jetson Nano Module offers most of the Jetson Nano Development Kit features, including main GPU, CPU, and many user interfaces like CSI, USB, GPIO, etc. Furthermore, the main difference is storage, 16GB eMMC in the Jetson Nano Module instead of the MicroSD card in the Jetson Nano Development Kit. An M.2 Key E connector activates all these functions.

Similarly for the software, the NVIDIA Jetson Nano Module supports NVIDIA JetPack, including a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.

Features

  • Compact size SoM powerful enough for advanced AI applications with low power consumption
  • Supports entire NVIDIA Software Stack for application development and optimization
  • Enables development of AI applications using NVIDIA JetPack™ SDK
  • Easy to build, deploy, and manage AI at the edge
  • Flexible and scalable platform to get to market with reduced development costs
  • Continuous updates over the lifetime of the product

Specification

GPUNVIDIA Maxwell architecture with 128 NVIDIA CUDA® cores
CPUQuad-core ARM Cortex-A57 MPCore processor
Memory4 GB 64-bit LPDDR4, 1600MHz 25.6 GB/s
Storage16 GB eMMC 5.1
Video Encode250MP/sec
1x 4K @ 30 (HEVC)
2x 1080p @ 60 (HEVC)
4x 1080p @ 30 (HEVC)
4x 720p @ 60 (HEVC)
9x 720p @ 30 (HEVC)
Video Decode500MP/sec
1x 4K @ 60 (HEVC)
2x 4K @ 30 (HEVC)
4x 1080p @ 60 (HEVC)
8x 1080p @ 30 (HEVC)
9x 720p @ 60 (HEVC)
Camera12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (1.5 Gb/s per pair)
ConnectivityGigabit Ethernet, M.2 Key E
DisplayHDMI 2.0 and eDP 1.4
USB4x USB 3.0, USB 2.0 Micro-B
OthersGPIO, I2C, I2S, SPI, UART
Mechanical69.6 mm x 45 mm
260-pin edge connector

Links

Klikkaa tarkemmat tiedot
Valmistaja
Valmistajan malli900-13448-0020-000

Datasheet JetsonNano

Lataa (884.8k)
