ESP01 USB OHJELMOINTILAITE

This module is a USB adapter or programmer for ESP01 that based on ESP8266 WiFi microcontroller. This adapter uses CP2104 USB serial port chip and adds ESP01 automatic download circuit. It is very convenient for users to download program into ESP-01/01S, upgrade firmware, serial debugging and so on. It supports software download from application like Arduino IDE and ESP8266 Flasher with just clicking one button. There is no need to press any button on the adapter or ESP01. The WiFi module will automatically enter the download mode.

Of course it also provide the serial communication with ESP01 module, you can use this adapter like normal USB to UART/Serial adapter for ESP, sending AT commands, getting response and performance serial debugging.

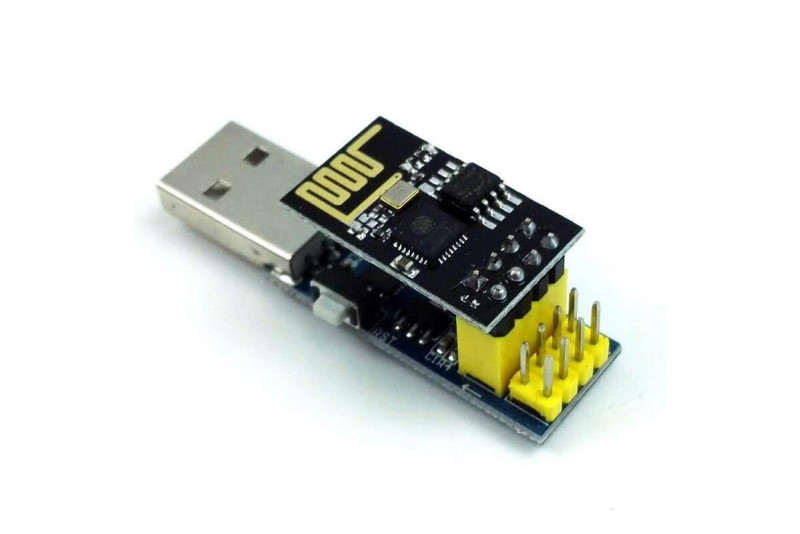

This adapter is conveniently fit with a 2x4P 2.54mm female header to plug the ESP01. This module also comes with 2x4P 2.54mm male header that provide same connection with female header port, extended the IO. So you can use the GPIO on ESP01 while it is stacked on this adapter. It's also comes with a reset button for ESP01.

Note: ESP01 module is not included.

Features

• USB Adapter to load program for ESP01

• Automatically enter the download mode

• USB Type A interface

• One 2x4P 2.54mm female header

• One 2x4P 2.54mm male header

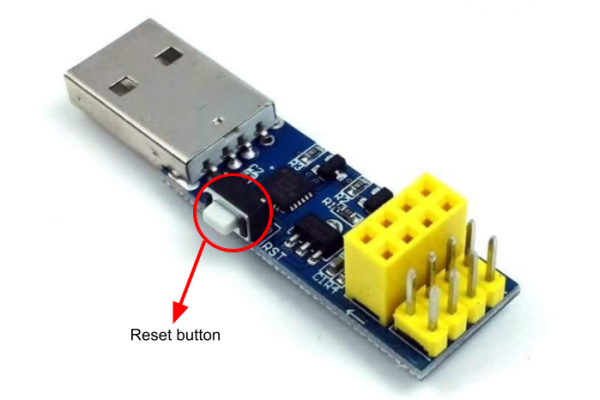

• On board Reset button for ESP01

• USB to Serial adapter for ESP01

• Serial debugging and sending AT command will be easy

• Dimension: 14 x 50 x 10mm

Packing List

• 1 x ESP01 USB Programmer Adapter

Links

•  CP2104 driver(choose the version according to your operating system: Windows 10, 7 or Linux)

• User manual ESP-LINK-v1.0
