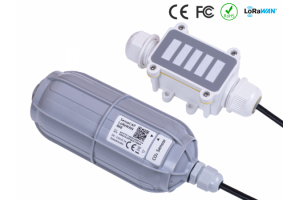

SenseCAP LoRaWAN CO2 Sensor

SEEED 114991728

1 kappale

Varastossa

Huom: Viimeinen tuote varastossa!

Valmistajan kotisivu

106,30 €

Seeed Studio 114991728 - SenseCAP Wireless CO2 Sensor - LoRaWAN EU868MHz

PRODUCT DETAILS

SenseCAP Wireless CO2 Sensor measures the level of carbon dioxide (CO2) gas at the range of 0 ~ 40000 ppm in the atmosphere, applicable for indoor environments. It is perfect for monitoring CO2 ppm in greenhouses, industrial campuses, factories, schools, office buildings, hotels, hospitals, transportation stations, and anywhere that data of CO2 emission is needed.

Features

  • Support LoRaWAN protocol Class A
  • NDIR CO2 sensor technology
  • Dual-channel detection for superior stability
  • Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in urban scenes
  • Battery life ≥ 1.5 years
  • Rapid installation and deployment (see the video below)

Applications

  • Smart Agriculture/ Precision Agriculture
  • Smart Building and Industrial Control
  • Environmental Monitoring
  • Other Wireless Sensing Applications

Specifications

CO2
ParametersConditionValue
Range-0 to 40000 ppm
Accuracy400 to 10000ppm±(30 ppm + 3 %MV)
Resolution-1 ppm
Temperature StabilityT = 0 to 50 ℃±2.5 ppm/℃
Parameters
Product ModelLong Range -S-868-CO2-01
MicrocontrollerUltra-low-power MCU
Support ProtocolBased on LoRaWAN v1.0.2 protocol
Long Range Channel PlanEU868
Long Range Power Output16 dBm (EIRP)
Sensitivity-137.5dBm(SF12, BW125KHz)
Current Consumption5 μA (sleep mode)
120 mA max(active mode)
Communication Distance2 to 10 km (depending on different antennas and environments)
IP RatingIP66 (Sensor Node); Indoor (Sensor Probe)
UV Resistanceanti-aging (from rain/sun exposure): UL746C F1
Enclosure MaterialPC
Operating Temperature0 ℃ to +50 ℃
Operating Humidity0 to 95 %RH
Device Weight319g
CertificationCE, FCC, RoHS
Battery (Contained in equipment)
Battery Life≥ 3 years (upload data once per hour)
Battery Voltage3.6V
Battery Capacity19Ah (non-rechargeable)

Long Range Frequency

The device is designed with a fixed Long Range channel, which can not be modified by users. The supported channels are as follows. Please refer to the user manual for how to connect this device with a LoRaWAN gateway.

Long Range Channel Plan
Uplink (MHz)868.1 - SF7BW125 to SF12BW125
868.3 - SF7BW125 to SF12BW125 and SF7BW250
868.5 - SF7BW125 to SF12BW125
867.1 - SF7BW125 to SF12BW125
867.3 - SF7BW125 to SF12BW125
867.5 - SF7BW125 to SF12BW125
867.7 - SF7BW125 to SF12BW125
867.9 - SF7BW125 to SF12BW125
Downlink (MHz)Uplink channels 1-8 (RX1)
869.525 - SF9BW125 (RX2 downlink only)

Part List

1Sensorx1
2Bracketx1
3M4 Self-drilling Screwx4
4M3 Self-drilling Screwx2

Links

Video

Klikkaa tarkemmat tiedot
ValmistajaSeeed Studio
Valmistajan malli114991728
Paino319g
