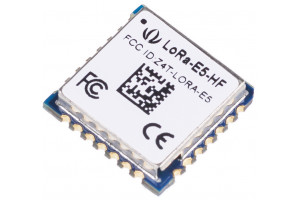

LoRa-E5 STM32WLE5JC Module

Tuotekoodi: SEEED 317990687

3 kappaletta

Huom: Viimeinen tuote varastossa!

LoRa-E5 LoRaWAN module is designed with ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low-power MCU and LoRa SX126X. It supports (G)FSK mode and LoRa. 62.5kHz, 125kHz, 250kHz, and 500kHz bandwidth can be used in LoRa® mode, making it suitable for the design of various IoT nodes, supporting EU868 and US915.

This LoRa E5 module is designed with industrial standards, hence it's highly suitable to be used in designing industrial IoT products, with a wide working temperature at -40℃ ~ 85℃.

Features

Ultra-low Power Consumption: as low as 2.1uA sleep current (WOR mode)
Extremely Compacted Size: 12mm * 12mm * 2.5mm 28 pins SMT
High Performance: TXOP=22dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
Long Distance Use: 158dB link budget
Wireless Connectivity: Embedded LoRaWAN® protocol, AT command, support global LoRaWAN® frequency plan
Worldwide Compatibility: wide frequency range; EU868/US915/AU915/AS923/KR920/IN865
Great Flexibility: For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.
FCC and CE Certified

Specifications

ITEMs	Parameter	Specifications	Unit
Core	MCU	ARM Cortex M4
Storage	256KB Flash, 64KB SRAM	KB
Structure	Size	12(W)12(L)2.5(H)	mm
Package	28 pins, SMT
Electrical Characteristics	power supply	3.3V type	V
sleep current	2.1uA(WDT on)	uA
Operation current (Transmitter+MCU)	50mA @10dBm in 434MHz type	mA
111mA @22dBm in 470MHz type
111mA @22dBm in 868MHz type
Operation current (Receiver+MCU)	6.7mA @BW125kHz, 868MHz type	mA
6.7mA @BW125kHz, 434MHz type
6.7mA @BW125kHz, 470MHz type
Output power	10dBm max @434MHz	dBm
22dBm max @470MHz
22dBm max @868MHz
Sensitivity	@SF12, BW125kHz	dBm
Fr(MHz)	min	type	max
434	-	-134.5	-136
470	-	-136.5	-137.5
868	-	-135	-137
Harmonics	< -36dBm below 1GHz	dBm
< -40dBm above 1GHz	dBm
Interface	RFIO	RF port
UART	3 group of UART, include 2 pins
I2C	1 group of I2C, include 2 pins
ADC	1 ADC Input, include 1 pins, 12-bit 1Msps
NRST	Manual reset pin input
SPI	1 group of SPI, include 4 pins
