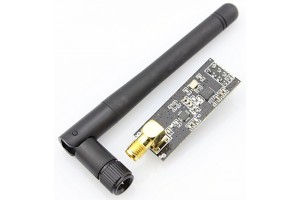

NRF24L01+PA+LNA Wireless Module - 1100 Meters

Tuotekoodi: ELC WRW24015R

10 kappaletta

The Data transmission chip NRF24L01+, and match with the department's professional design, Add the the chip of power PA and LNA, RF switch, band pass filter composed of a professional full two-way RF power amplifier, making the effective communication distance has been greatly expanded. You can use the SPI port of Arduino or any other MCU to control NRF24L01 wireless module to complete long distance wireless data transmission system design.

Ominaisuudet

It uses 2.4G global open ISM band, with license free
Transmit power is greater than +20 dbm.Support six-channel data reception. 2Mbit/s speed makes high-quality VoIP possible Low
operating voltage: 2.7 to 3.6V
Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping
Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal; SPI interface facilitates the communication with MCU I/O port
Facilitate the development for customers, without development RF part
Software programming is fully compatible with NRF24L01 modules.Size: 37.4mm * 16.6mm
Applications: remote control, telemetry, wireless meter reading, access control systems, residential paging, industrial data acquisition systems, wireless tags, identification, contactless RF smart card, small wireless data terminal, fire safety systems, wireless remote control systems, bio-signal acquisition, wireless 232, wireless 422/485 data communications

Pinnikartta

PIN		Function	Direction
Pin1	GND	Ground
Pin2	VCC	VCC, 1.9~3.6V
Pin3	CE	Operating Mode,RX/TX	In
Pin4	CSN	SPI chip select	In
Pin5	SCK	SPI clock	In
Pin6	MOSI	SPI Input	In
Pin7	MISO	SPI Output	Out
Pin8	IROAM	Interrupt Output	Out
