Arduino Edge Control (AKX00034)

ARD AKX00034

1 kappale

Varastossa

Valmistajan kotisivu

279,97 €

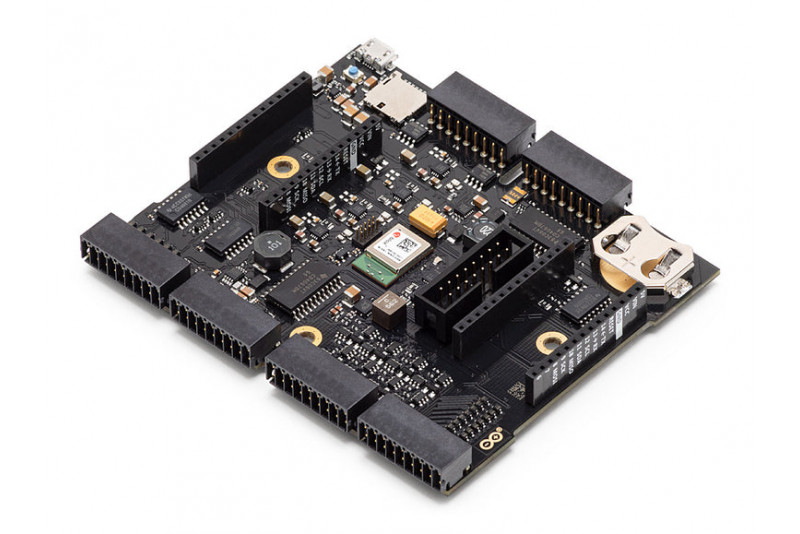

Alkuperäinen Arduino® AKX00034 - Etäseuranta- ja ohjausratkaisu, joka on optimoitu ulkokäyttöön.

It can be positioned anywhere and is suitable for precision farming, smart agriculture, and other applications requiring intelligent control in remote locations. Power can be either supplied via solar panel or DC input.

Remotely control your application through the Arduino Cloud (or third-party services) using a choice of connectivity options suitable to the location. The Arduino Edge Control features built-in Bluetooth® and its connectivity can be expanded with 2G/3G/CatM1/NB-IoT modems, LoRa®, Sigfox, and WiFi by adding anyone of the MKR boards.

The Arduino Edge Control is capable of connecting sensors and drive actuators like latching valves (common in agriculture). Moreover, it has the capability to provide real-time monitoring over the entire process, thereby reducing production-related risks.

Particularly suited to smart agriculture, the sensors can collect real-time data such as weather conditions, soil quality, crop growth, amongst others. Once sent to the Arduino Cloud, the data value chain becomes valuable analytics that supports business processes at various levels (e.g. crop yield, equipment efficiency, staff performance, etc.). The Arduino Edge Control has the capability to improve crop quality and reduce human effort/error by automating processes like irrigation, fertilization, or pest control.

Sovellusesimerkit

  • Automated Greenhouses
  • Hydroponics/Aquaponics
  • Mushroom Cultivation

Speksit

MicrocontrollernRF52840 (64 MHz Arm® Cortex-M4F)
Digital Input6x edge sensitive wake up pins
Digital Output8x latching relay command outputs with drivers
8x latching relay command outputs without drivers
Relays4x 60V/2.5A galvanically isolated solid state relays
Analog Input4x 4-20mA inputs
8x 0-5V analog inputs
16x hydrostatic watermark sensor input
Terminal Block Connectors6x 18 pin plug in terminal block connectors
Power Supply12 V Acid/lead SLA Battery Supply
(Recharged via solar panels)
Power ConsumptionLow power (up to 34 months on a 12V/5Ah battery)
200uA Sleep current
Memory1 MB onboard Flash memory
2 MB onboard QSPI Flash memory
SD CardInterface for SD Card connector (through expansion port only)
Connectivity

Bluetooth
Wifi*
3G*NB-IoT*
LoRaWAN®*

* Requires Arduino MKR board
PeripheralsFull-speed 12 Mbps USB
Arm CryptoCell CC310 security subsystem
QSPI/SPI/TWI/I²S/PDM/QDEC
High speed 32 MHz SPI
Quad SPI interface 32 MHz
12-bit 200 ksps ADC
128 bit AES/ECB/CCM/AAR co-processor
Operational Temperature-40° C to +85° C (-40° F to 185°F)
Length104 mm
Width86 mm

Dokumentaatio

EAN7630049203044
Klikkaa tarkemmat tiedot
ValmistajaArduino
Valmistajan malliAKX00034
Käyttölämpötila-40...+85°C
ProsessoriARM Cortex-M4 (nRF52840)
