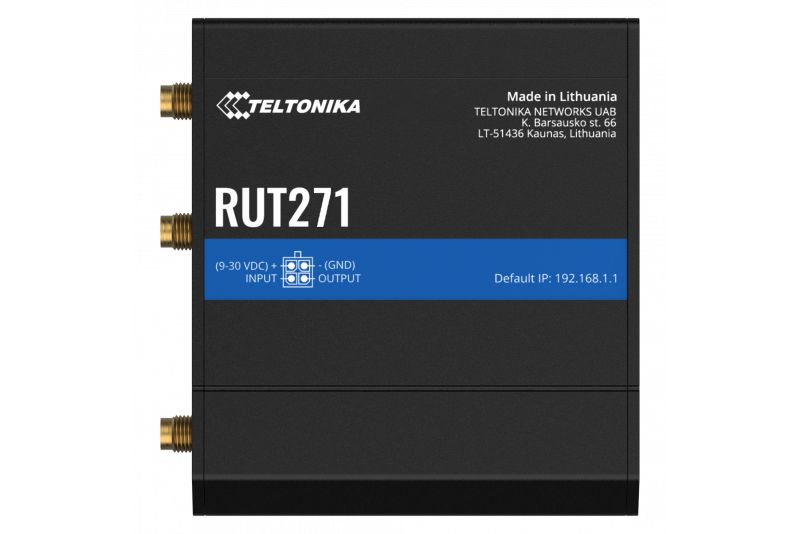

Teltonika RUT271 RedCap 5G/WiFi ROUTER

Description

The RUT271 is a Redcap 5G router, bridging the gap between 4G and full-capacity 5G. Supporting SA architecture, this 5G router can wirelessly support up to 50 end devices and features the low latency of 5G—at affordable pricing. The RUT271 supports Wi-Fi and is backward compatible with 4G LTE Cat 4. This industrial-grade RedCap 5G router is also equipped with WAN failover, two 10/100 RJ45 ports, a compact and durable design, and numerous other brilliant features for expert professional deployment.

Key features

• Automatic switching to available backup connection
• Backward compatible with 4G LTE Cat 4
• Low latency, high capacity, affordable pricing
• Wireless access point with Hotspot functionality

Hardware

• Mobile: 5G Sub-6GHz SA 223 Mbps DL, 123 Mbps UL; 4G LTE Cat 4 – LTE 195 Mbps DL, 105 Mbps UL
• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• Flash storage: 32 MB, NOR Flash
• Powering options: 4-pin industrial DC power socket, 9 - 30 VDC
• SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder
• Antenna connectors: 2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
• Ethernet: 2 x RJ45 ports, 10/100 Mbps: 1 x WAN (configurable as LAN), 1 x LAN
• Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
• Inputs/Outputs: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high; 1 x Digital Output, Open collector output, max output 30 V, 300 mA
• Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminum housing, plastic panels
• Dimensions (W x H x D): 83 x 25 x 74 mm
• Weight: 130 g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Status, SMS, USSD, Black/White list, Multiple PDN, Band management, SIM PIN code management, APN, Bridge, Passthrough
• Network features: VoIP passthrough support, Network Management, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, Hotspot, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, SSHFS, VRF support
• Security: Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control
• VPN and tunneling: OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, ZeroTier, WireGuard, Tinc
• Monitoring and Management: WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
• Cloud solutions: RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub
• Services: OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS
