Teltonika RUT260 4G Cat6 (LTE)/WiFi Router

RUT260 is a Teltonika Networks LTE Cat 6 cellular router with WAN failover. Balancing the key features of the RUT240 and RUT360, this cellular router is powerful, lightweight, and supports a wide variety of industrial protocols, including MQTT, SNMP, Modbus, and more.

Features

• LTE CAT 6: Cellular speeds of up to 300Mbps with carrier aggregation
• WAN FAILOVER: Automatically switches to an available backup connection
• INTERFACES: 2 x 10/100 Mbps Ethernet ports, Digital I/Os
• COMPACT: Small in size and easy to install

Speksit

HARDWARE

• Mobile: 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
• CPU: Mediatek, 580 MHz, MIPS 24Kc
• Storage: 128 MB, DDR2
• Memory: 16 MB, SPI Flash
• Powering options: 4-pin industrial DC power socket, 9 – 30 VDC
• SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder, eSIM (Optional)
• Antenna connectors: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi

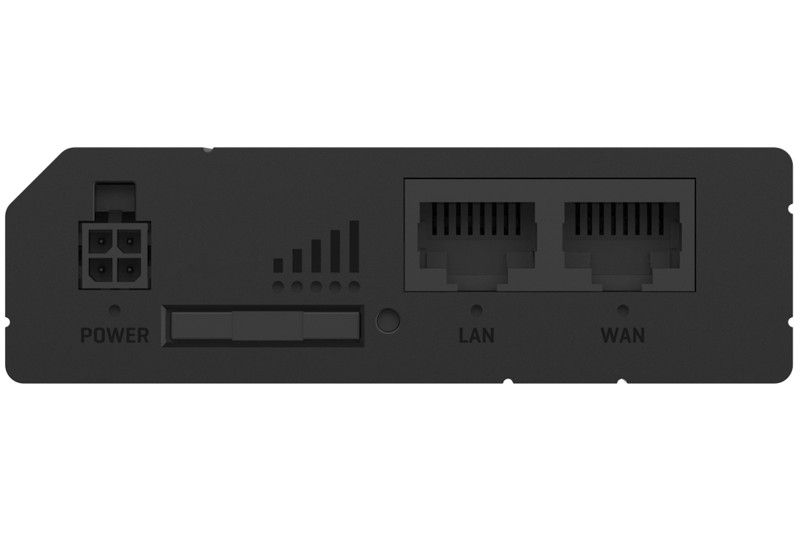

• Ethernet: 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
• Wi-Fi: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• Inputs/Outputs: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 2 x Connection type status, 5 x Mobile connection strength, 1 x LAN status, 1 x WAN status, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminum housing, plastic panels
• Dimensions (W x H x D): 83 x 25 x 74 mm
• Weight: 130 g

SOFTWARE

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock, Operator black/white list, Data/SMS limits
• Network features: Routing, Failover, Firewall, DHCP, DDNS, Load Balancing, VoIP passthrough, Connection monitoring, QoS/SQM, SSHFS
• Monitoring and Management: WEB UI, FOTA, CLI, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Cloud solutions: Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub
• Wireless Connectivity Features: Port forward, traffic rules, custom rules
• Hotspot: Internal/external Radius, SMS OTP, internal/external landing page, Walled Garden

Standard package includes

• Router RUT260
• 9 W PSU
• 2x Mobile antennas (swivel, SMA male)
• 1x Wi-Fi antenna (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box
