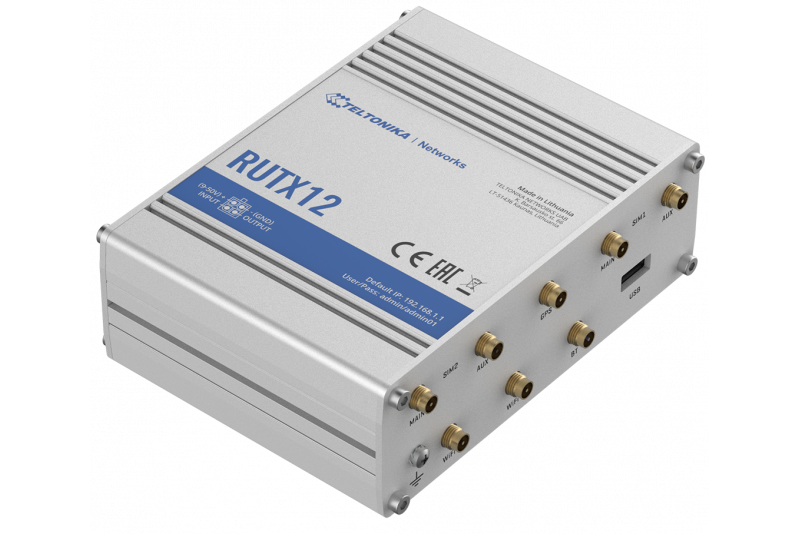

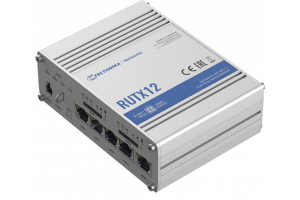

Teltonika RUTX12 2x4G/LTE-A 4xCAT6/WiFi/BT DUAL-SIM ROUTER

Description

RUTX12 is the most powerful Dual LTE Cat 6 router in our portfolio.

Two simultaneously operational LTE Cat 6 modems provide speeds up to 600 Mbps with load balancing feature.

5 x Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM make this device irreplaceable in applications where losing connection is not an option.

Packed with advanced security features like VPN, IPsec, PPTP, L2TP, Stunnel and GNSS tracking.

Key features

• DUAL LTE - Cellular speeds up to 600Mbps with dual simultaneous LTE CAT 6 connections
• DUAL SIM - Instant failover switching
• WIFI & BT - Wave-2 802.11ac Dual Band WIFI and Bluetooth LE
• GNSS - Global Navigation Satellite System for location services and time synchronization
• LOAD BALANCING - Allows to use multiple WAN sources to increase throughput
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile: 2 X 4G/LTE (Cat 6), 3G
• CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
• Memory: 256 MBytes Flash, 256 MBytes RAM
• Powering option: 4 pin power socket, 9-50 VDC
• SIM: 2 x External SIM holders (2FF)
• Antenna connectors: 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS
• Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
• WiFi: IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Connectors: 1 x 4 pin DC, 5 x Ethernet, 4 x SMA for LTE, 2 x WiFi RP-SMA, 1 x SMA for GNSS, 1 x RP-SMA for Bluetooth
• Bluetooth: 4.0 (Low energy)
• Inputs/Outputs: On 4 pin socket: 1 x Digital input, 1 x Digital open collector output
• Other: 1 x USB host
• Status LEDs: 4 x WAN type, 6 x Connection type, 6 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option and grounding capability
• Dimensions (W x H x D): 132 x 44 x 95 mm
• Weight: 540 g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list (planned), Data/SMS limits
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Routing: Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• Hotspot: External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
• Supported Hotspot platforms: IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai

Standard package contains

• Router RUTX12
• 24 W PSU
• 4 x LTE antennas (swivel, SMA male)
• 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
• 1 x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box
