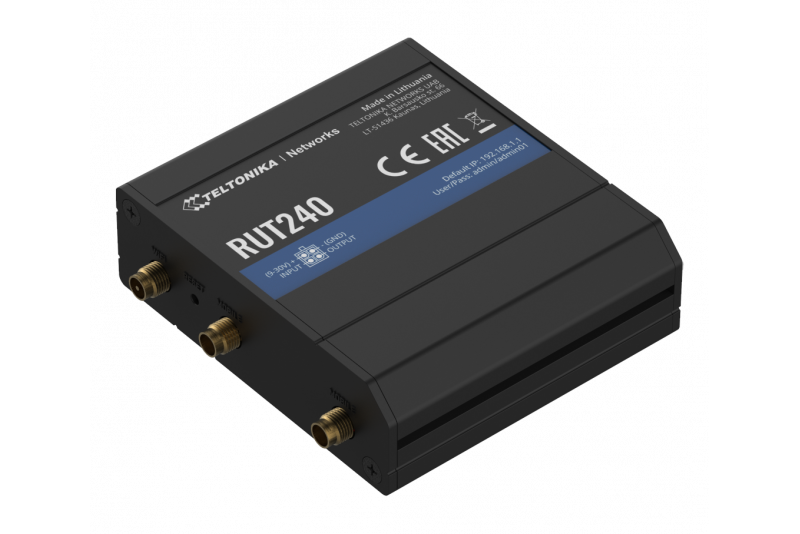

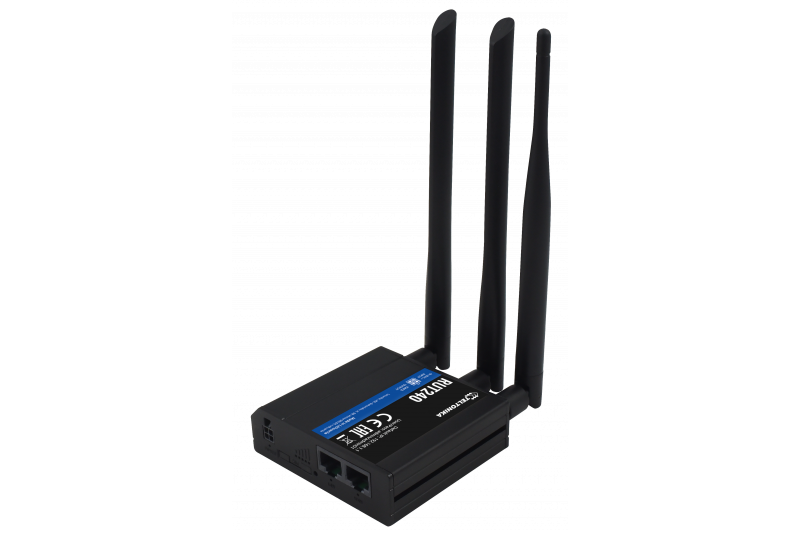

Teltonika RUT240 4G/LTE WiFi ROUTER

Note!

This product is EOL. There is still availability until 31.7.2023 for orders. Software upgrades will be offered until 30.6.2024 and critical security updates until 31.12.2025. Replacement models are RUT241 and RUT200.

Description

• RUT240 is an all-time bestseller industrial 4G LTE Wi-Fi router for professional M2M & IoT applications.
• It delivers high performance for mission-critical cellular communication in rigorous environments.
• RUT240 is widely used for 4G backup, Remote Connection, Advanced VPN, and tunneling services in IoT networking solutions.
• WAN failover ensures automatic switch to alternative backup connection in case of any connectivity issues.
• The Wi-Fi is functional in both: Access point and Station mode at the same time

Key features

• Connectivity - 4G/LTE (Cat 4), 3G, 2G
• Compactness - Small size – easy integration
• WAN failover - Automatic switching to available backup connection
• I/O - Digital Input/Output for remote monitoring and control
• WiFi - Wireless Access Point with Hotspot functionality
• RMS - Compatible with Teltonika Remote Management System

Hardware

• Mobile: 4G/LTE (Cat 4), 3G, 2G
• CPU: Atheros, MIPS 24Kc, 400 MHz
• Memory: 16 MBytes Flash, 64 MBytes RAM
• Powering option: 4 pin power socket, 9-30 VDC
• SIM: 1 x External SIM holder (2FF)
• Antenna connectors: 2 x SMA for mobile, 1 x RP-SMA for WiFi
• Ethernet: 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
• WiFi: IEEE 802.11b/g/n, Access point (AP), Station (STA)
• Inputs/Outputs: On 4 pin socket: 1 x Digital input, 1 x Digital open collector output
• Status LEDs: 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing with DIN rail mounting option, plastic panels
• Dimensions (W x H x D): 83 x 25 x 74 mm
• Weight: 135g

Note! This model is equipped with Quectel cellular module.

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Mobile features: Auto APN, Band lock
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
• Network: Failover (Network backup), VLAN, QoS, Load Balancing
• Security: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), Port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacksw
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP
• Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
• Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
• Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
• SMS features: SMS status, SMS configuration, Send/Read SMS via HTTP POST/GET, EMAIL to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging

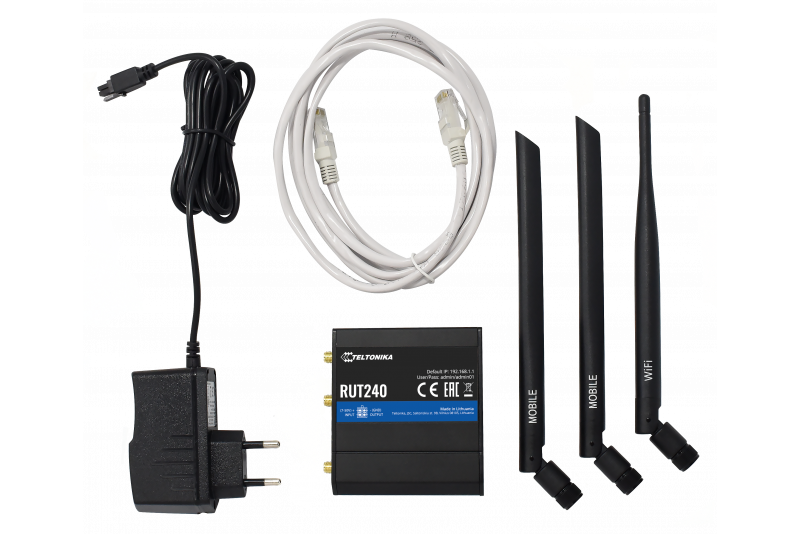

Standard package contains

• Router RUT240
• 9 W PSU
• 2 x LTE antennas (swivel, SMA male)
• 1 x WiFi antenna (swivel, RP-SMA male)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• RMS Flyer
• Packaging box
