Teltonika RUT301 Ethernet ROUTER 5x10/100 /Digital I/O /USB2.0

Description

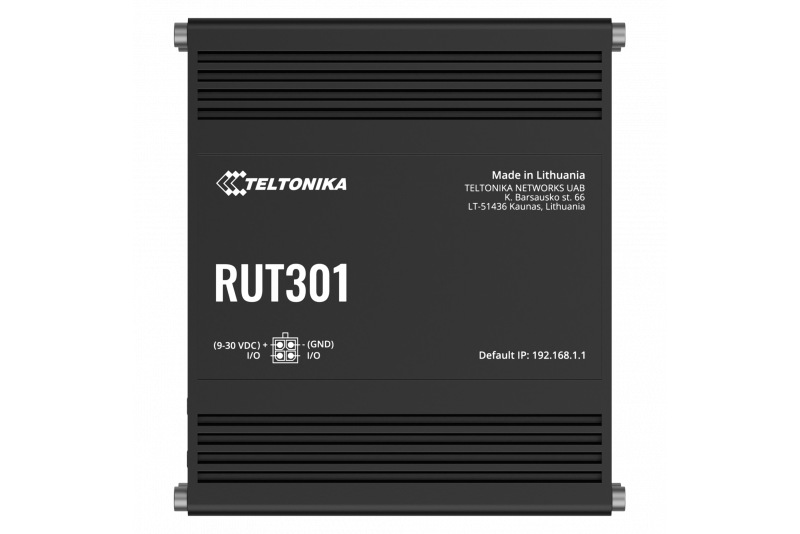

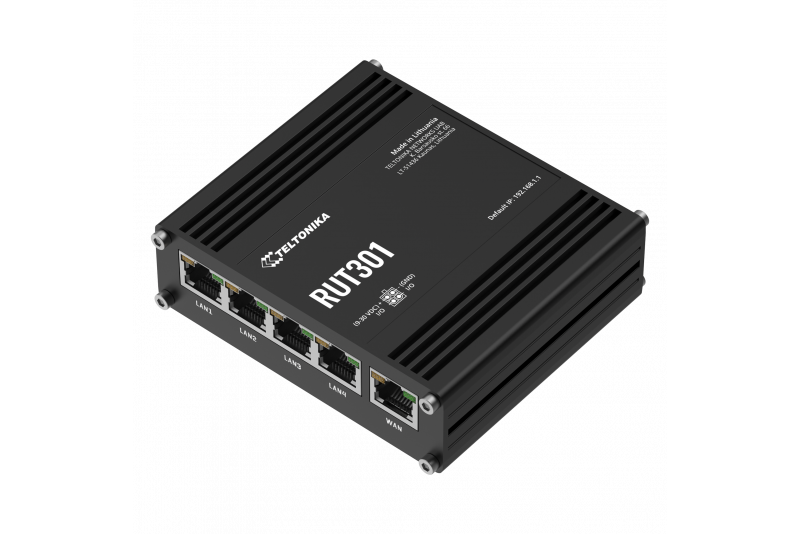

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.

Key features

• Industrial-grade design for withstanding harsh environments
• For remote management, access & VPN services
• 5 x Ethernet ports (10/100 Mbps), Digital I/Os, and USB 2.0
• Pre-configured firewall and multiple VPN services

Hardware

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128MB, DDR2
• FLASH storage: 16MB serial NOR flash
• Powering options: 4-pin industrial DC power socket, 9 - 30 VDC
• Ethernet: 5 x RJ45 ports, 10/100 Mbps
• Inputs/Outputs: 2 x Digital Input, 2 x Digital Output on 4-pin power connector
• Other: 1 x USB host
• Status LEDs: 1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED
• Operating temperature: -40 °C to 75 °C
• Housing: Aluminium housing
• Dimensions (W x H x D): 100 x 30 x 85 mm
• Weight: 233 g

Software

• Operating system: RutOS (OpenWrt based Linux OS)
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
• Monitoring and Management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS
• VPN and tunneling: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
• Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity
• Services: DDNS, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba)
• Administration: Update FW from file, check FW on server, configuration profiles, configuration backup
• Firewall: Port forwarding, Traffic rules, Custom rules, Pre-configured firewall rules, DMZ, NAT, NAT-T, NAT helpers, Unlimited firewall configuration via CLI

Packing includes

• Router RUT301
• 9 W PSU
• Ethernet cable (1.5 m)
• QSG (Quick Start Guide)
• Packaging box

Links

• RUT301 product page
• RUT301 Wiki
