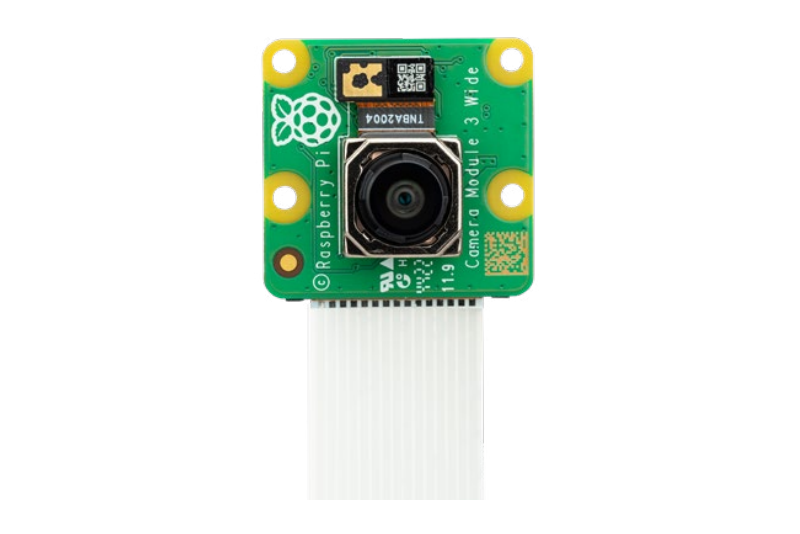

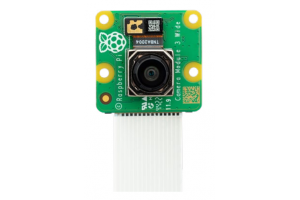

Raspberry Pi CAMERAMODULE V3 Wide 12MPx View larger

Raspberry Pi CAMERAMODULE V3 Wide 12MPx

RPI CAMBOARDV3W

9 Items

In stock

Manufacturer homepage

60,69 €

The Raspberry Pi Camera Module 3 Wide includes a 12 megapixel Sony IMX708 sensor, an infrared sensor, HDR shooting mode and a 120-degree wide-angle lens.

Note! Suitable for Raspberry Pi 5, but requires RPI SC1128 adapter cable (see below)

Raspberry Pi Camera Module 3 is a compact camera for Raspberry Pi. It features an IMX708 12 megapixel sensor with HDR and autofocus. Camera Module 3 is available in standard and wide-angle versions, both with or without an infrared sensor.

Features

  • Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
  • High signal-to-noise ratio (SNR)
  • Built-in 2D Dynamic Defect Pixel Correction (DPC)
  • Phase Detection Autofocus (PDAF) for rapid autofocus
  • QBC Re-mosaic function
  • HDR mode (up to 3 megapixel output)
  • CSI-2 serial data output
  • 2-wire serial communication (supports I2C fast mode and fast-mode plus)
  • 2-wire serial control of focus mechanism

Specifications

  • Sensor: Sony IMX708
  • Resolution: 11.9 megapixels
  • Sensor size: 7.4mm sensor diagonal
  • Pixel size: 1.4μm × 1.4μm
  • Horizontal/vertical: 4608 × 2592 pixels
  • Common video modes: 1080p50, 720p100, 480p120
  • Output: RAW10
  • IR cut filter: Integrated in standard variants; not present in NoIR variants
  • Autofocus system: Phase Detection Autofocus
  • Dimensions: 25 × 24 × 11.5mm (12.4mm height for Wide variants)
  • Ribbon cable length: 200mm
  • Cable connector: 15 × 1mm
  • FPC Operating temperature: 0°C to 50°C

Video

click for more info
CompatibleRaspberry Pi
