RASPBERRY PI HAT Lora RFM95 IOT Board

RPI WIR01323B

2 Items

In stock

Warning: Last items in stock!

Manufacturer homepage

25,67 €

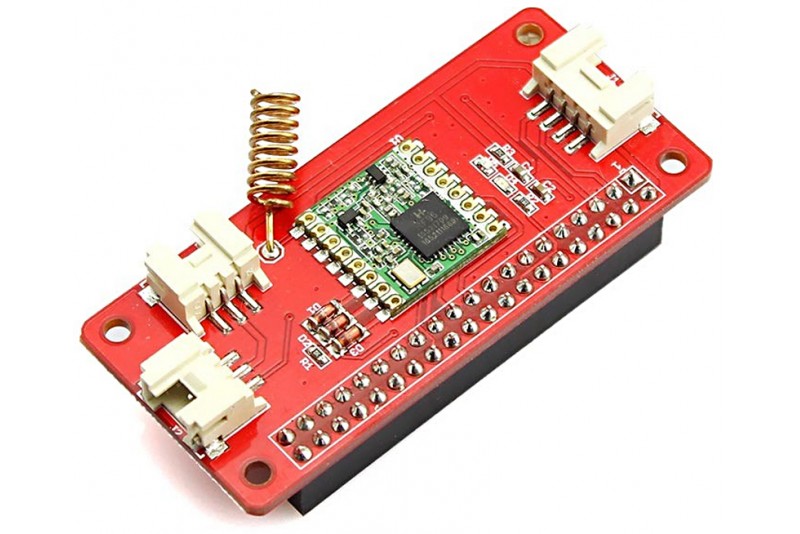

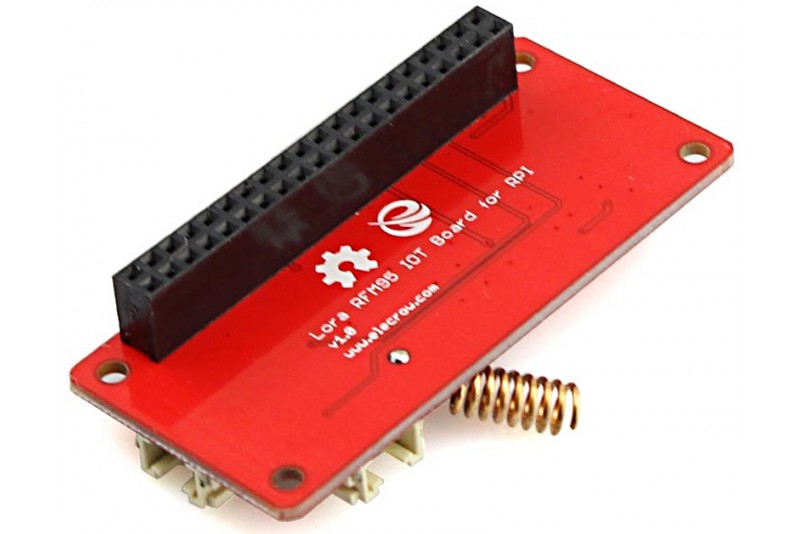

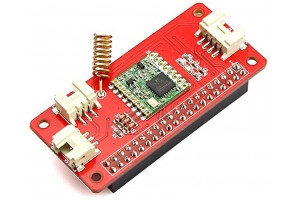

Elecrow WIR01323B - Lora RFM95 IOT Board for RPI

This module can accomplish ultra long distance transmission of data, that is, it can provide ultra long range spread spectrum communication and high anti-interference. It also has the function of transmitting data through the wall. The wireless transmission module is mainly used in remote control, telemetry, remote communication equipment, robot control, wireless communications and so on. Its high anti-interference can give your project a certain degree of convenience.

Features

  • LoRa™ Modem
  • 168 dB maximum link budget
  • Excellent blocking immunity
  • Compatible with I2C
  • Long distance
  • Automated meter reading
  • Built-in temperature sensor and low battery indicator
  • Built-in bit synchronizer for clock recovery

Specifications

  • Operating frequency: 868MHZ@RFM95
  • Output power: 20dbm
  • Maximum emission current: 120mA
  • Current accepted: 12mA
  • Sleep current 2ua
  • Transmission rate: 300kbps
  • Power: 3.7-5

Package list

  • Lora RFM95 IOT Board for RPI

Wiki & External links

click for more info
ManufacturerElecrow
Manufacturer's modelWIR01323B
Measures65 x 30 x 13 mm
