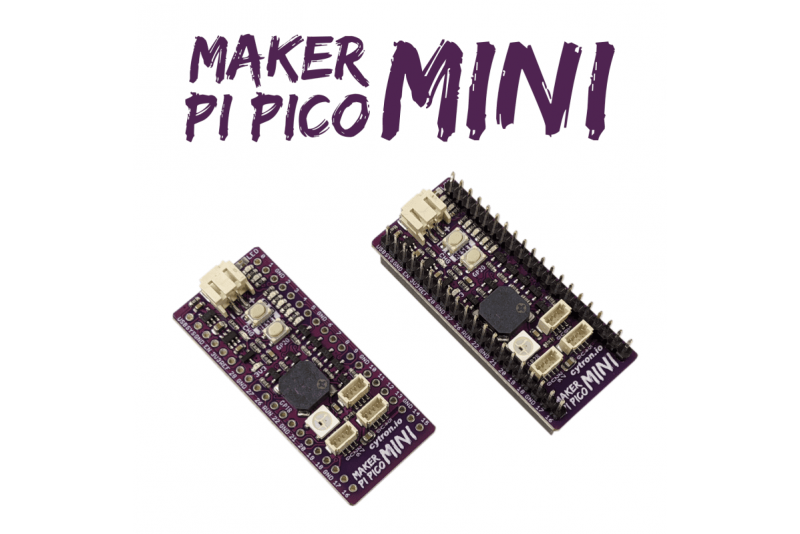

Cytron Maker Pi Pico Mini

NOTE: Maker Pi Pico Mini comes in 3 variants:

1. MAKER-PI-PICO-MINI (Pre-soldered Raspberry Pi Pico with preloaded CircuitPython)
2. MAKER-PI-PICO-MINI-W (Pre-soldered Raspberry Pi Pico W - Wireless with preloaded CircuitPython)
3. MAKER-PI-PICO-MINI-NB (Without any Pico / Pico W. Comes with pin headers)

Love the Maker Pi Pico but can't fit it into your project? Now we have the Maker Pi Pico Mini. Powered by the same awesome Raspberry Pi Pico / Pico-W, it also inherited most of the useful features from its bigger sibling such as GPIO status LEDs, WS2812B Neopixel RGB LED, passive piezo buzzer, and not forget the user button and reset button.

Features

• Powered by Raspberry Pi Pico / Pico-W
• Single-cell LiPo connector with overcharge / over-discharge protection circuit, rechargeable via USB.
• 6x Status indicator LEDs for GPIOs
• 1x Passive piezo buzzer (Able to play musical tone or melody)
• 1x Reset button
• 1x User programmable button
• 1x RGB LEDs (WS2812B Neopixel)
• 3x Maker Ports, compatible with Qwiic, STEMMA QT, and Grove (via conversion cable)
• Support Arduino IDE, CircuitPython and MicroPython
• Dimension: 23.12mm x 53.85mm

Packing List

• 1 x Maker Pi Pico Mini (Pre-soldered Raspberry Pi Pico with preloaded CircuitPython)
• 3 x Grove to JST-SH (Qwiic / STEMMA QT) Cable

Links

• Maker Pi Pico Mini Datasheet
• Official Raspberry Pi Pico Page
• Getting started with Raspberry Pi Pico
