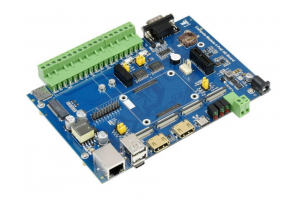

Waveshare CM4 Industrial IoT Base Board

RPI CM4-9814

2 Items

In stock

Warning: Last items in stock!

Manufacturer homepage

86,96 €

Waveshare Compute Module 4 Industrial IoT Base Board

Note! The product is delivered without CM4 module.

The Compute Module 4 PoE 4G Board is an industrial-grade IoT baseboard designed for Raspberry Pi Compute Module 4 (not included). It features communication functions including global 5G/4G/3G/2G cellular network, and PoE Ethernet. There are also various industrial isolated interfaces such as CAN, RS485, RS232, ADC, and GPIO, which make it an ideal choice for sorts of industrial IoT applications.

  • Compatible with Raspberry Pi Compute module 4 all variants
  • M.2 slot for connecting separate communication module, global 5G/4G/3G/2G cellular network support
  • 10/100M/1000M auto-negotiation Ethernet port, with PoE enabled
  • USB HUB, allows connecting more USB devices
  • USB TO UART, for serial debugging
  • Provides various industrial isolated interfaces: CAN, RS485, RS232, ADC, GPIO, RTC
  • Multiple video-related ports like HDMI, DSI, CSI
  • LED indicators for monitoring operating status

Specifications

CM4 SOCKETsuitable for all variants of Compute Module 4
NETWORKINGGigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
M.2 B KEY, supports 5G / 4G module
SIM card slot, supports standard SIM card for 5G/4G/3G/2G communication
CONNECTORIsolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO
USBDual USB 2.0 Type A
DISPLAYDual MIPI DSI display ports (15pin 1.0mm FPC connector)
CAMERADual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)
VIDEODual HDMI ports, supports 4K 30fps output
RTCReal-time clock with battery socket and ability to wake Compute Module 4
STORAGEMicroSD card socket for Compute Module 4 Lite (without eMMC) variants
FAN HEADERallows speed adjustment and measurement, 5V / 12V input
POWER INPUT7V~36V wide range
DIMENSIONS160 × 114mm

What’s On Board

  1. Compute Module 4 socket
    for connecting Raspberry Pi Compute Module 4
  2. Power input
    7-36V wide range power supply
  3. CM4 status indicator
    red: Raspberry Pi power indicator
    green: Raspberry Pi operating status indicator
  4. M.2 status indicator
    red: enabled indicator
    green: operating status indicator
  5. User LED
    handy for I/O output testing, or program running status monitoring
  6. USB TO UART
    for serial debugging
  7. HDMI
    dual HDMI ports, supports dual 4K 30fps output
  8. USB 2.0
    dual USB 2.0 ports, for connecting USB devices
  9. RJ45 Gigabit Ethernet
    10/100/1000M auto-negotiation Gigabit Ethernet port, with PoE Power Over Ethernet features
  10. M.2 slot
    for connecting 5G/4G communication module
  11. SIM card slot
    supports standard SIM card for 4G/3G/2G communication
  1. RTC real time clock battery holder
    supports CR1220 button cell
  2. PCIe Gen 2 × 1 socket
  3. Fan header
    for connecting cooling fan, allows speed adjustment and measurement
  4. Buzzer
  5. DISP
    dual MIPI DSI display ports
  6. CAM
    dual MIPI CSI camera ports
  7. Isolated GPIO
    allows controlling / detecting devices via GPIO
  8. Isolated I2C
    allows controlling / reading devices via I2C
  9. Isolated ADC
    ADC differential input
  10. Isolated CAN interface
  11. Isolated RS485 interface
  12. Isolated RS232 interface

  1. Micro SD card slot (bottom side)
    insert a Micro SD card with pre-burnt system, to start up Compute Module 4 Lite
  1. USB-C programming port (bottom side)
    allows burning system image into Compute Module 4 eMMC variants

Links

click for more info
ManufacturerWaveshare
Manufacturer's modelCompute Module 4 PoE 4G Board (20535)
Measures160 x 114 mm
CompatibleRaspberry Pi Compute Module 4 (CM4)
