RPI CM4 2x GigaEthernet Carrier Board

SEEED 102110497

1 Item

In stock

Warning: Last items in stock!

Manufacturer homepage

79,22 €

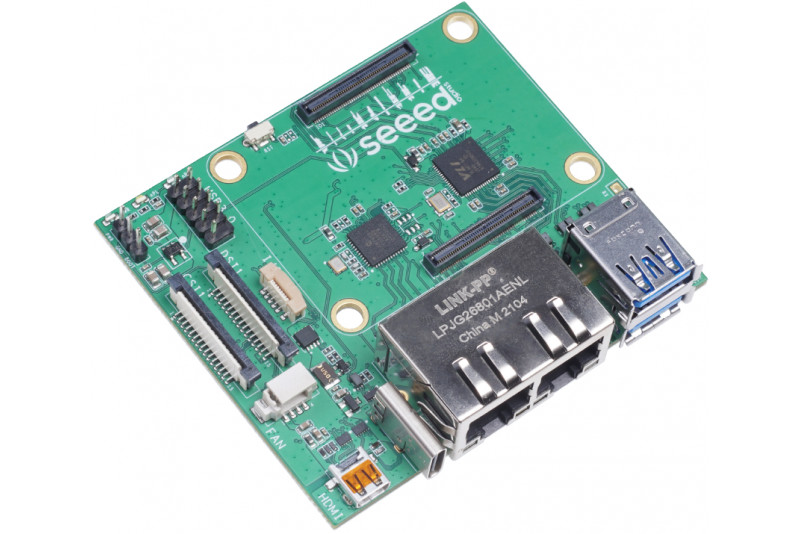

Seeed Studio 102110497 - Dual Gigabit Ethernet Carrier Board for Raspberry Pi Compute Module 4

The Dual Gigabit Carrier Board powered by Raspberry Pi Compute Module 4 is equipped with Dual Gigabit Ethernet ports and dual USB 3.0 ports, making it suitable for soft router applications, while keeping the hardware to minimal.

PRODUCT DETAILS

Features

  • Compact size (75x64x21mm) with rich I/O peripherals
  • Dual Gigabit Ethernet connectors for soft router applications
  • Camera/ display connectivity using MIPI CSI, MIPI DSI and micro-HDMI interfaces
  • Onboard dual USB 3.0 with an additional USB 3.0 9-pin header for more external ports
  • Micro-SD Card slot to load system image for non-eMMC version of CM4
  • More Expandability via FPC Connector (I2C, SPI)
  • External fan support with fan power connector
  • Power using USB Type-C

Description

The Dual Gigabit Carrier Board powered by Raspberry Pi Compute Module 4 is equipped with Dual Gigabit Ethernet ports and dual USB 3.0 ports, making it suitable for soft router applications, while keeping the hardware to minimal.

It features a variety of I/O peripherals such as MIPI CSI, MIPI DSI, micro-HDMI to connect displays/ cameras, a standard 9-pin USB 3.0 header for more USB expansion, a micro-SD card slot, and an FPC connector, while maintaining a compact form factor! This board is ideal for HTPC makers, Linux developers, software router enthusiasts, and the majority of regular Raspberry Pi users.

Specifications

SpecificationDetails
NetworkingDual Gigabit Ethernet Connectors
USB 3.0 to GbE
(Gigabit Ethernet Bridge)
Microchip's LAN7800
USB2 x USB 3.0 Ports
1 x USB 3.0 9-Pin Header
StorageMicro-SD Card Slot (load system Image for non-eMMC CM4 version)
Camera1 x MIPI CSI Connector
Display1 x MIPI DSI Connector
1 x Micro HDMI Connector
FPCInterface for I2C and SPI
External FanPower connector for fan
Power5V/3A using USB Type-C Port
LAN7800 Industrial
Temperature Range
-40°C to +85°C
Dimensions75x64x21mm
Weight43g

Applications

  • Software Router
  • IoT
  • Smart Home
  • Camera Projects

Part List

  • 1 x Dual Gigabit Ethernet Carrier Board for Raspberry Pi Compute Module 4

Links

Video

Note! Use Raspberry Compute Module 4 compatible heat sink with this product.

click for more info
ManufacturerSeeed Studio
Manufacturer's model102110497
Measures75 x 64 x 21 mm
Weight43g
CompatibleRaspberry Pi Compute Module 4 (CM4)
