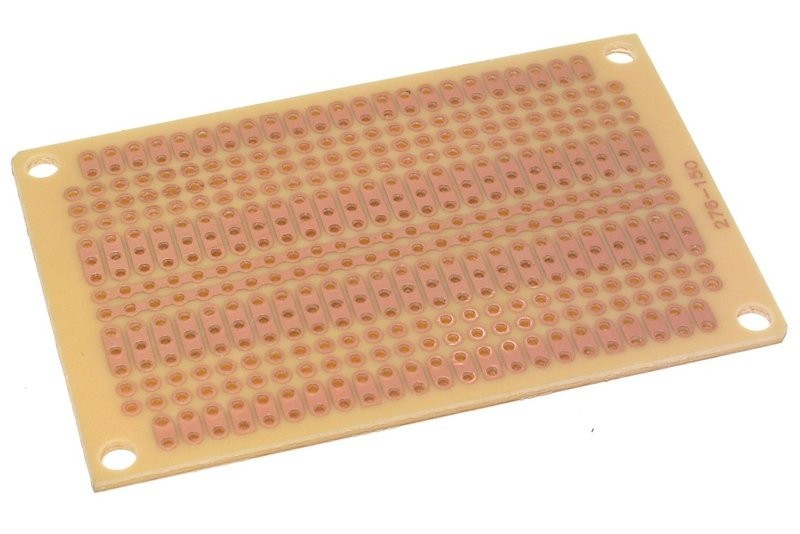

MIXED-PAD PROTOCOL WITH DOTS AND STRIPS
- well suited for interconnections of a few DIP-cased circuits
- on the component side, the silk side has markings similar to those on the copper side
- solder strips grouped into three and two-hole lengths
- end-to-end pins in the middle of the card for e.g. ground and supply voltage
- 3,5 mm fixing holes on the edges of the card
- holes Ø 1,0 mm for the pedals
- thickness 1,5 mm
- 2,54 mm with grid
