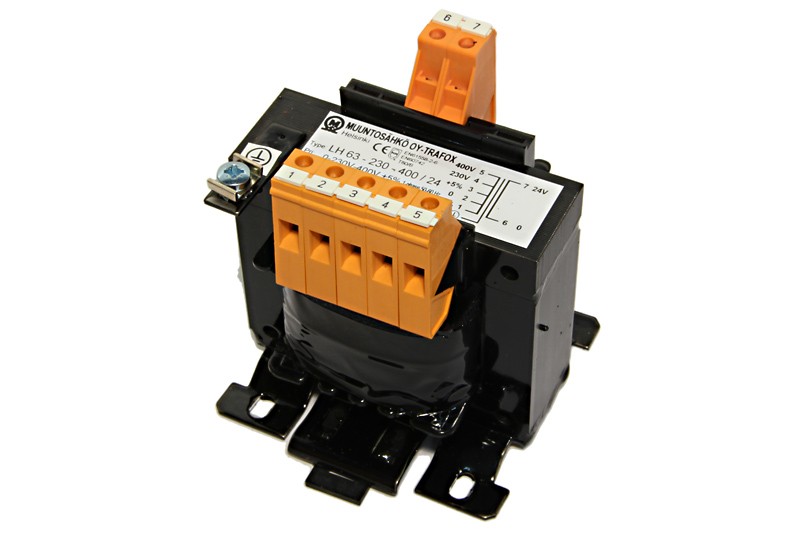

This transformer has two main supply voltages to choose from: 400VAC or 230VAC. In addition, for fine tuning, one of the incoming wires can be connected to the +5% or -5% terminal instead of 0V.
- Input voltage: 400VAC or 230VAC (±5%)
- output voltage: 24VAC
- power class: 63VA
- separate earthing point
- contact-protected connecting strips
- T60/B thermal rating
- EN61558-2-4 and EN60742
- IP2X, i.e. for dry indoor installation
- mounting mechanism at the bottom for DIN rail
