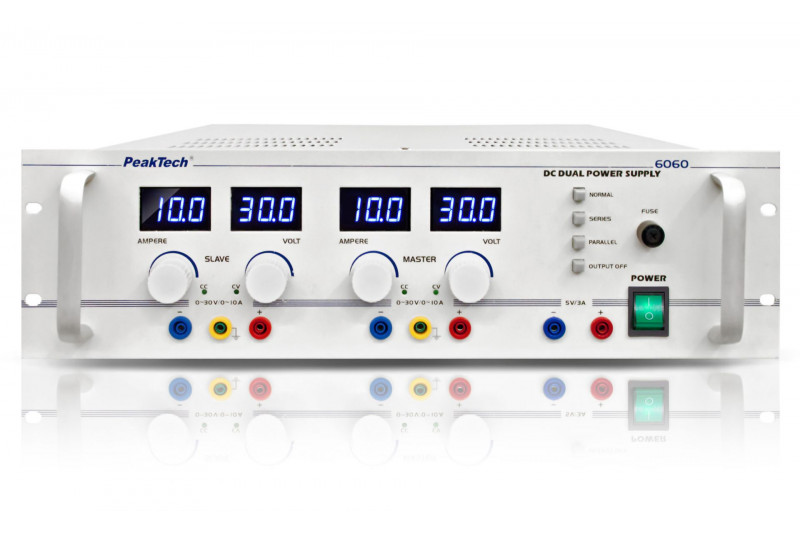

PeakTech 6060 REGULATED 2CH POWER SUPPLY WITH 3 OUTPUTS

Double power supply unit for 19" rack mounting and also designed as a desktop unit in laboratories, industry and education. 3-digit, 14 mm blue LED displays allow a fast and precise reading. 4 mm safety sockets and a 19" metal housing are special features of this power supply unit. Furthermore, the device has 2 outputs with continuously variable output voltage or output current and can optionally be connected in series or parallel. Thus the max. output voltage for series-connected outputs is 60 V DC; for parallel-connected outputs the max. output current is doubled to 20 A DC.

Product advantages

• can be used as 19" rack mounting or as a stand-alone unit
• Output can be switched off
• Safety: IEC-1010-1
• Accessories: power cable, operating instructions

Technical data

• Output voltage: 2 x 0 - 30 V; 5 V/3 A fixed
• Output current: 2 x 0 - 10 A
• Ripple U: 2 mV < 3 A; 5 mV &rt; 3 A; 10 mV fixed voltage
• Ripple I: 3 mA
• Display accuracy voltmeter: ± 0.2 % FSO + 2 pcs.
• Display accuracy ammeter: ± 1.0 % F.S. + 2 pcs
• Operating voltage: 100 ~ 127 V / 200 ~ 240 V AC; 50/60 Hz; switchable
• Dimensions: 19" 3 U system housing, (WxHxD) 480 x 135 x 425 mm
• Weight: 16 kg
