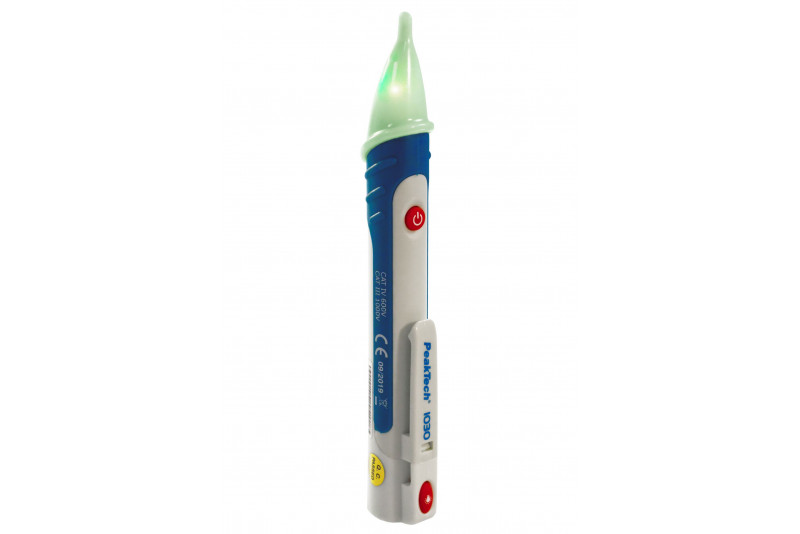

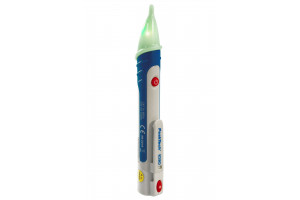

PeakTech 1030 VOLTAGE DETECTOR 90-1000VAC

User-friendly for non-contact voltage testing from 90 V to 1000 V AC. Simply place the tip in a power outlet, lamp socket, or on an insulated cable. Suitable for tracking cables concealed under plaster and localizing breaks in cables. If AC voltage is present at the measuring point, this is visually indicated by a flashing red LED and integrated buzzer. If the test point is voltage-free, the probe lights up a steady green.

Features

• Audible and visual signal if voltage is detected
• On and off switch
• Suitable for circuits with 50/60 Hz
• Robust double enclosure, handy size with pocket clip, fits easily in any shirt pocket
• All external surfaces are made of non-conductive material
• Integrated torch with ON/OFF button
• Safety: EN 61010-1; CAT III 1000 V
• Supplied accessories: batteries and user manual

Technical Data

• Operating range: 90 ~ 1000 V AC, 50/60 Hz
• Operating temperature: -10 - +50°C
• Operating voltage: 2 x 1.5 V AAA (UM-4) batteries
• Dimensions (W x D): 157 x 26 mm
• Weight: 50 g

Specs

• PeakTech_1030_04-2022_DE-EN.pdf
