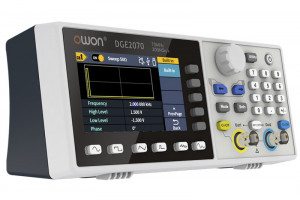

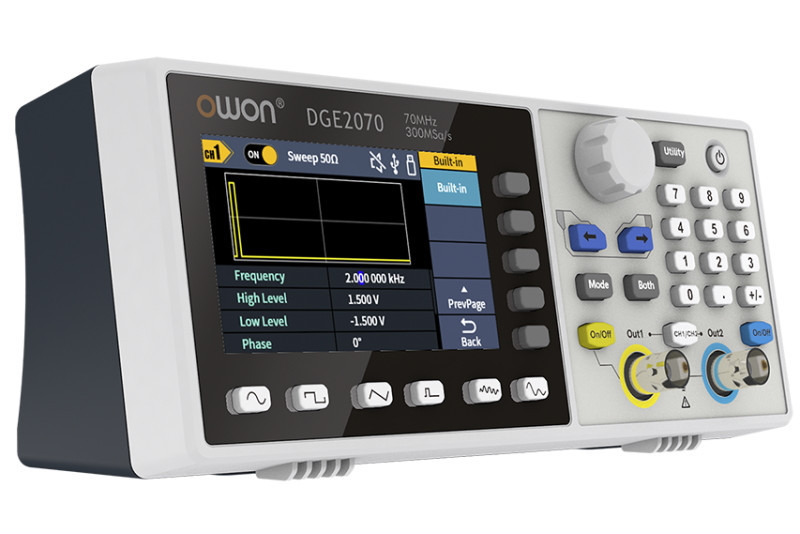

Owon DGE2070 70MHz SIGNAL GENERATOR

DGE2070

Out of stock

Manufacturer homepage

233,80 €

Owon DGE2035 - small sized, 2-ch, 70MHz, 14-bits Arbitrary Waveform Generator with modulations.

Features

  • 70MHz frequency output
  • 300MSa/s Sample rate，Vertical resolution 1μHz
  • 14 bits Vertical Resolution，8K Arb waveform length
  • Comprehensive waveform output : 5 basic waveforms, and 150 built-in arbitrary waveforms
  • Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst
  • SCPI, and LabVIEW supported

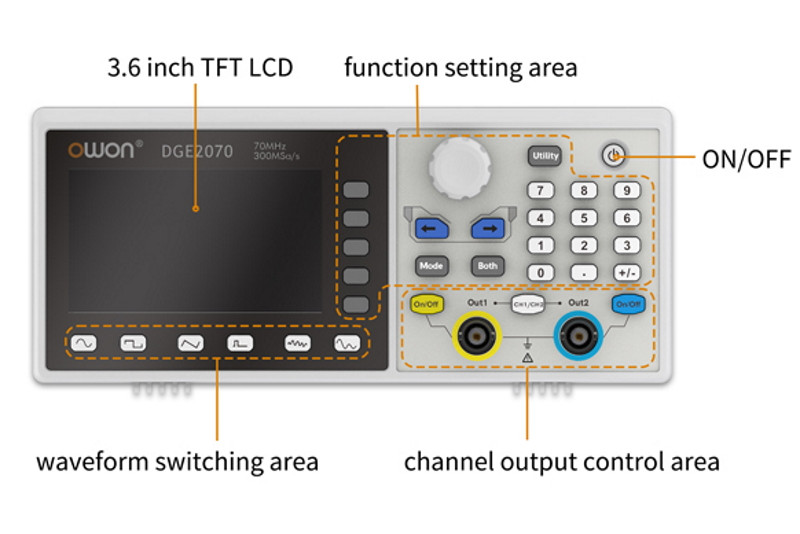

  • 3.6 inch (480 × 260 pixels) LCD

Specifications

ModelDGE2035DGE2070
Channel2
Frequency Output35MHz70MHz
Sample Rate125MSa/s300MSa/s
Vertical Resolution14 bits
Waveform
Standard Waveformsine, square, pulse, ramp, noise
Arbitrary Waveformexponential rise, exponential fall, sin(x)/x, step wave, and others,total 150 built-in waveforms
Frequency (resolution 1μHz)
Sine1μHz-35MHz1μHz-70MHz
Square1μHz ~ 15MHz1μHz ~ 20MHz
Pulse1μHz ~ 15MHz1μHz ~ 20MHz
Ramp1μHz ~ 1MHz1μHz ~ 2MHz
Noise20MHz (-3dB，typical)
Arbitrary Waveform1μHz ~ 10MHz
Sine Wave Spectrum Purity
Harmonic Distortion (typical (0dB))DC - 1MHz：<-65dBc 1MHz - 30MHz：<-60dBc 30MHz - 60MHz：<-50dBc
Total Harmonic Distortion＜0.2%, 10 Hz to 20 kHz, 1 Vpp
Spurious (non-harmonic) (typical (0dB))≤10MHz：<-70dBc >10MHz：<-70dBc + 6dB/ octave band
Phase Noise (typical (0 dBm, 10 kHz deviation))typical（0dBm，10kHz offset） 10MHz：-110dBc/Hz
Ramp
Linearity≤1% of peak output (typical, 1kHz, 1 Vpp, 50% symmetry)
Symmetry0% ~ 100%
Arbitrary
Waveform Length2 points – 8K points
Sample Rate125Ma/s300Ma/s
Amplitude
into 50Ω load1mVpp ~ 10Vpp（≤ 10MHz） 1mVpp ~ 5Vpp （≤70MHz）
DC Offset Range
（AD+DC）		±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω
DC offset resolution1mV or 4digits
Load Impedance50Ω (typical)
DC offset Accuracy±(1 % of |setting| + 1 mV + amplitude Vpp * 0.5%)
Modulation
TypeAM、FM、PM、FSK、Sweep、Burst
Sweep characteristic
Trigger sourceInternal, external,
Input / Output
Display3.6 inch 480 x 260 pixels LCD

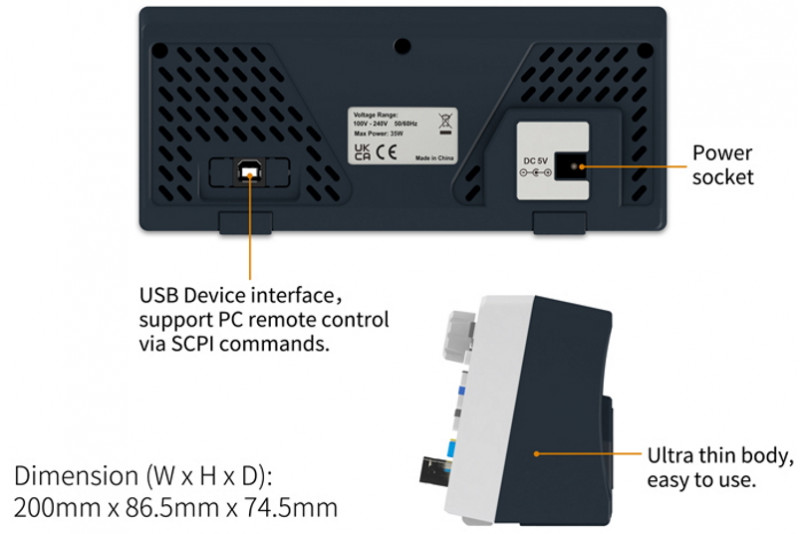

Communication InterfaceUSB Host
Mechanical specifications
Size200mm*68.5mm*74.5mm
Weight0.45kg

Packing includes

  • DGE2070 signal generator
  • Quick Guide
  • Q9 Cable
  • Power Adapter
  • BNC to Alligator Clip
  • USB to DC Cord



Links

click for more info
ManufacturerOwon
Manufacturer's modelOwon DGE2070
User manualsonly in English
Measures200 x 68.5 x 74.5 mm
Weight0,45kg
Channels2
Bandwidth70MHz
