  4. Owon XDS3104E OSCILLOSCOPE 100MHZ 4CH

Oscilloscopes

Manufacturers

Specials

Owon XDS3104E OSCILLOSCOPE 100MHZ 4CH View larger

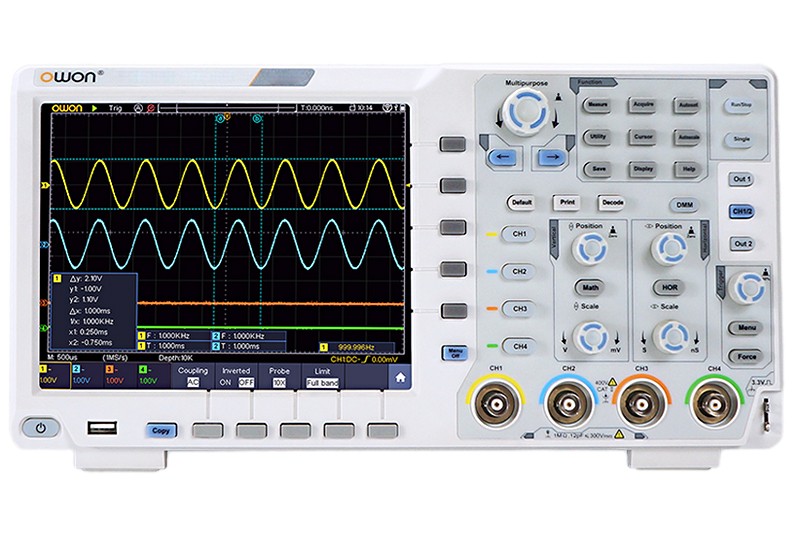

Owon XDS3104E OSCILLOSCOPE 100MHZ 4CH

XDS3104E

4 Items

In stock

Manufacturer homepage

721,70 €

Owon XDS3104E - 4-CH 100MHz DSO with capacitive touch screen. Battery option available!

Features

  • 100MHz Bandwidth，1GS/s sample rate
  • 8-bit high resolution ADC
  • 40M record length 45,000 wfms/s waveform refresh rate
  • low back ground noise
  • 8 inch 800 x 600 high resolution LCD, multi-touch screen, more user-friendly operation experience
  • SCPI, and LabVIEW supported
  • multi- trigger, and bus decoding function
  • multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and VGA

Introduction video

Specifications

ModelXDS3104E
Bandwidth100MHz
Sample Rate1GS/s
Vertical Resolution (A/D))8 bits
Record length40M
Waveform Refresh Rate45,000 wfms/s
Horizontal Scale (s/div))2ns/div - 1000s/div, step by 1 - 2 - 5
Channel4
Display8" color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy±2.5 ppm
Input CouplingDC, AC, GND
Vertical Sensitivity1mV/div - 10V/div (at input)
Trigger TypeEdge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,
and CAN (optional)
Bus Decoding(optional)I2C, SPI, RS232, CAN
Trigger ModeAuto, Normal, and Single
Vertical Range±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div)
Waveform Math+, -, *, /, FFT, Intg, Diff, Sqrt, and user defined function
Communication InterfaceUSB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counteravailable
Power Supply100V - 240V AC, 50/60Hz, CAT II
Fuse2A, T class, 250V
Battery (optional)3.7V, 13200mA
Dimension (W x H x D)340 x 177 x 90 mm

Optional Module / Function Included
VGAVGA+AV port
MTSTouch screen(capacitor-type)

Optional Decoding Kits Included
RS232RS232
SPISPI
I2CI2C
CANCAN

Part list

  • XDS3104E oscilloscope with option: VGA,TOUCH,CAN,I2C,RS232,SPI
  • Four probes with adjust tool
  • CDROM
  • Quick guide
  • Power cord
  • USB cable

Support

Lowest price within 30 days721,70 € incl.vat
click for more info
ManufacturerOwon
Manufacturer's modelXDS3104E (VGA,TOUCH,CAN,I2C,RS232,SPI)
User manualsEnglish, Finnish by request (pdf)
Measures340 x 177 x 90 mm
Weight2,6kg
Channels4
Size8 inches
Resolution800x600
Bandwidth100MHz
Sample memory40M
Sample rate1GS/s
Sample resolution8bit

Owon XDS3104E Tech specs

Download (179.97k)

Accessories
