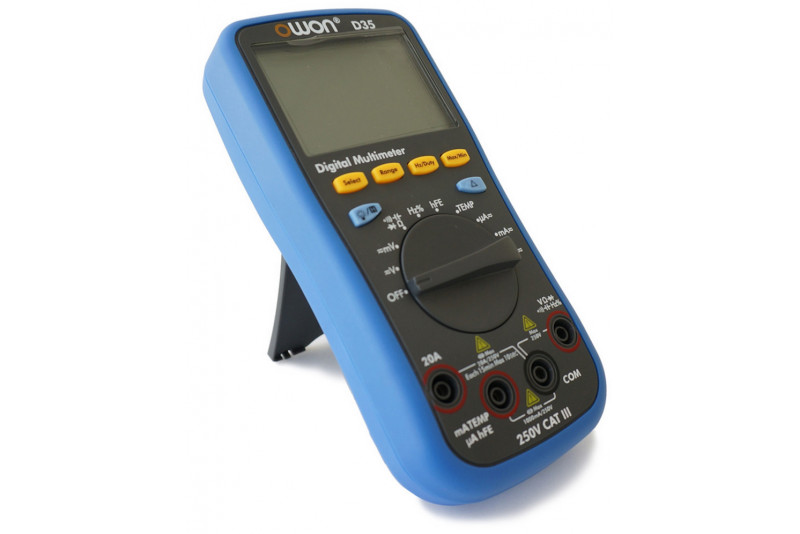

Owon D35 DIGITAL MULTIMETER

The OWON® D35 is a digital multimeter with large display and 3 5/6 display. The instrument has an automatic shutdown function to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode test and audible continuity test.

Note! The difference between the cheaper D35 meter and the B35T+ meter is the lack of TrueRMS measurement and BlueTooth functions.

This multimeter is certified up to 250V CAT III, because the internal fuses are only rated up to 250V. If you are looking for a valid 1000V alternative, please look at the Owon OW18B.

Features

• automatic range selection
• display backlight
• automatic shutdown
• data-hold hold function
• relative measurement

Technical specifications

• large LCD display 69x52mm with 3 5/6 display
• input impedance: 10MΩ
• measuring ranges:
  • DC voltage: 60mV-1000V, ±(0.5%+2)
  • AC voltage: 60mV-1000V, ±(0.8%+2)
  • DC current: 600μA-20A, ±(0.8%+2)
  • AC current: 600μA-20A, ±(0.8%+2)
  • resistance: 600Ω-60MΩ, ±(0.8%+2)
  • Capacitance: 40nF~4000μF, ±(2%+3)
  • frequency: 9.999Hz-9.999MHz, ±(0.8%+2)
  • PWM pulse duty cycle: 0.1%-99.9%, ±(1.2%+3)
  • Temperature: -50...+400°C, ±(2.5% of reading + 3)
• diode testing
• continuity test: beeps when below 30Ω
• protection class: CAT III 1000V
• batteries: 2x AA (LR6)
• fuses: F1A/250V and F20A/250V

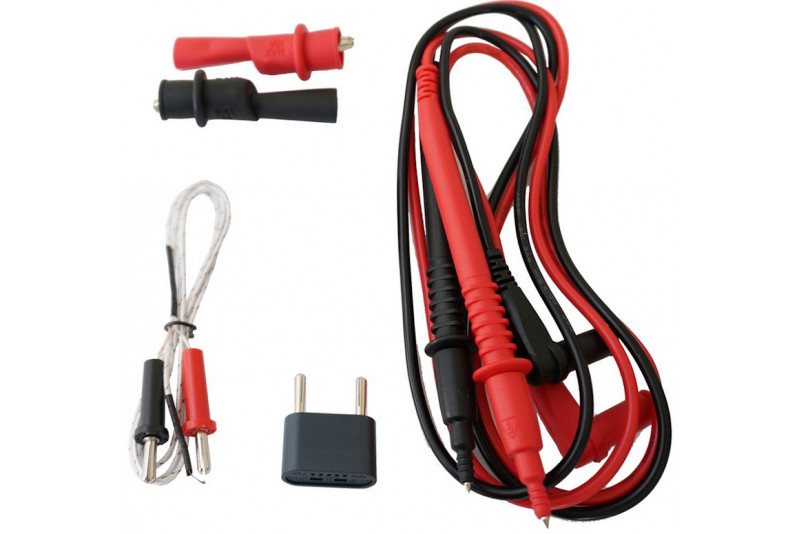

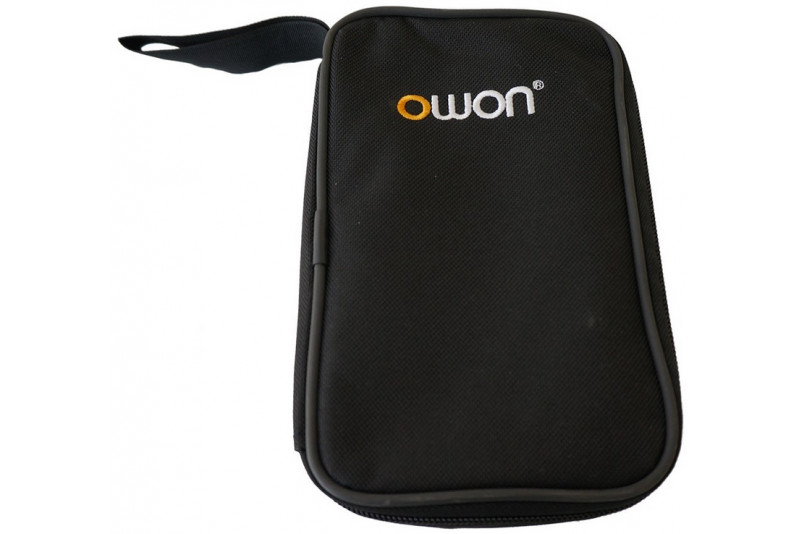

Delivery includes: a D35 multimeter, test leads, a K-type thermocouple, an English user manual and a carrying bag.

The user manual in Finnish is available on request.
