PeakTech 8102 MEASUREMENT EQUIPMENT SET Service & Troubleshooting

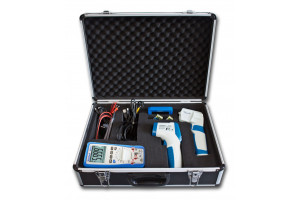

PeakTech® 8102 - Contains everything you need for service and troubleshooting in a handy carrying case. The case includes a P 2025 A multimeter, a P 5600 borescope and a P 4945 infrared thermometer.

Features

• USB connection - log measurement data with the P 2025 A multimeter and DMM Tool software
• The P 5600 inspection camera has a camera that is only 8.2mm wide, allowing you to reach even the smallest spaces
• The P 4945 Infrared thermometer makes temperature measurements quick and easy

Technical specifications (P 2025 A Multimeter)

• PC-Link - log results via USB connection
• Diode tester
• Safety classification: EN -61010-1; CAT III 1000 V, CAT IV 600 V
• Display counts: 6000
• DCV: 600mV/6V/60V/600V/1000V
• ACV: 600mV/6V/60V/600V/1000V (TrueRMS)
• DCA: 600µA/6000µA/60mA/600mA/6A/10A
• ACA: 600µA/6000µA/60mA/600mA/6A/10A (TrueRMS)
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

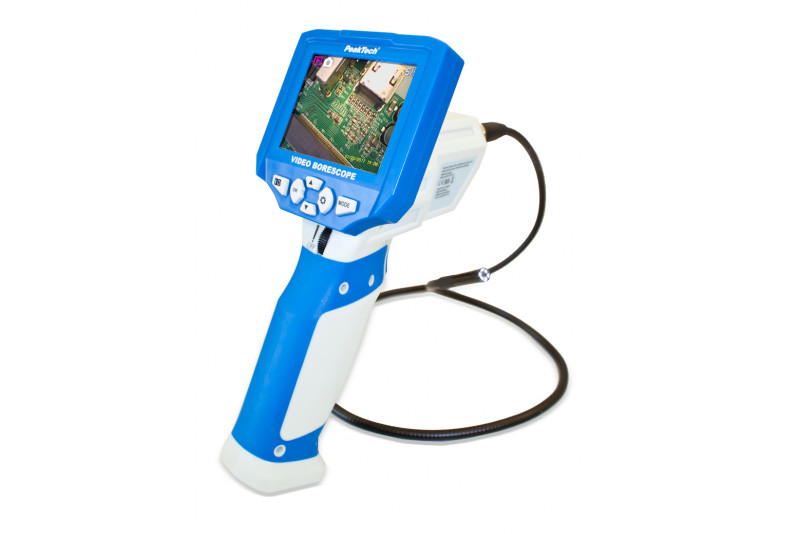

Technical specifications (P 5600 borescope)

• Detachable 3.5" TFT display
• HD 720p video recording, 3MP photos
• 4GB MicroSD memory card
• 8.2mm camera with dimmable LED lights
• Ingress : IP67
• S-Video output

Technical specifications (P 4945 Infrared thermometer)

• Range: -50°C...380°C
• Display counts: 2000

The DMM Tool software can be downloaded here.

Includes: P 2025 A multimeter, P 5600 borescope, P 4945 infrared thermometer, thermocouple, probes, accessories, batteries.
