PeakTech 8100 MEASUREMENT EQUIPMENT SET DMM & Clamp Meter

The PeakTech® 8100 - Measurement equipment set contains everything you need to measure voltage, current, frequency and temperature in a handy carrying case. Includes a multimeter, a clamp adapter for measuring current, clamp-type temperature sensor and test leads.

Features

• USB connection - store and monitor measurement data using DMM Tool software
• Measure AC currents up to 200A with the clamp adapter
• Clamp-type temperature sensor for -20-200°C - attaches securely to the object to be measured, ideal for measuring e.g. water pipes.

Technical specifications (P 3415 Multimeter)

• PC-Link - log measurement results via USB connection
• Diode tester
• Safety classification: EN -61010-1; CAT III 600 V
• Display: 6000
• DCV: 600mV/6V/60V/600V/1000V
• ACV: 600mV/6V/60V/600V/750V (TrueRMS)
• DCA: 600µA/6000µA/60mA/600mA/6A/10A
• ACA: 600µA/6000µA/60mA/600mA/6A/10A (TrueRMS)
• Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

Technical specifications (P 4200 Clamp adapter)

• Maximum current: 200A AC
• Conversion ratio: 1mV/A (1000:1)
• Frequency range: 40-400Hz
• Max. diameter of cable to be measured: 16mm
• Safety rating: EN 61010-1, CAT II 600V
• Connector diameter: 4mm

The DMM Tool software can be downloaded here.

Note! The delivery includes wires with banana sockets at both ends and alligator clip adapters, but not the standard multimeter test leads. If required, you can find compatible test leads here.

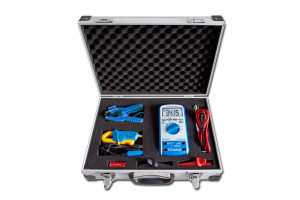

Includes: P 3415 multimeter, P 4200 clamp adapter, P 7020 measuring leads, P 7015 hook-and-loop adapters, TF-25 clamp-type temperature sensor, thermocouple, P 7265 carrying case.
